Investing in a water bottling business is a significant decision. Whether you are looking to start a small-scale operation or scale up an existing facility, understanding the water bottling plant cost is crucial for budgeting and ROI planning.

The price of a water bottling line varies dramatically based on automation levels, capacity, and the specific machinery included. In this guide, we will analyze the most budget-friendly yet efficient configuration available today, breaking down the costs of each component.

What Determines the Water Bottling Plant Cost?

Before diving into numbers, it is important to note that the total investment is influenced by:

  • Automation Level: Fully automatic lines cost more but reduce labor; semi-automatic lines offer a lower entry price.

  • Capacity: Lines producing 1,000 bottles per hour are significantly cheaper than those producing 10,000+ BPH.

  • Water Source: Groundwater requires more intensive filtration (Reverse Osmosis) than municipal water.

  • Factory Infrastructure: Floor space, electrical requirements, and civil works.

Case Study: The Most Cost-Effective Semi-Automatic Turnkey Solution

For entrepreneurs looking for a balance between affordability and functionality, a semi-automatic turnkey production line is the ideal starting point. Below is a breakdown of a standard configuration designed for regions with lower labor costs, featuring a total cost starting at 58,000 USD.

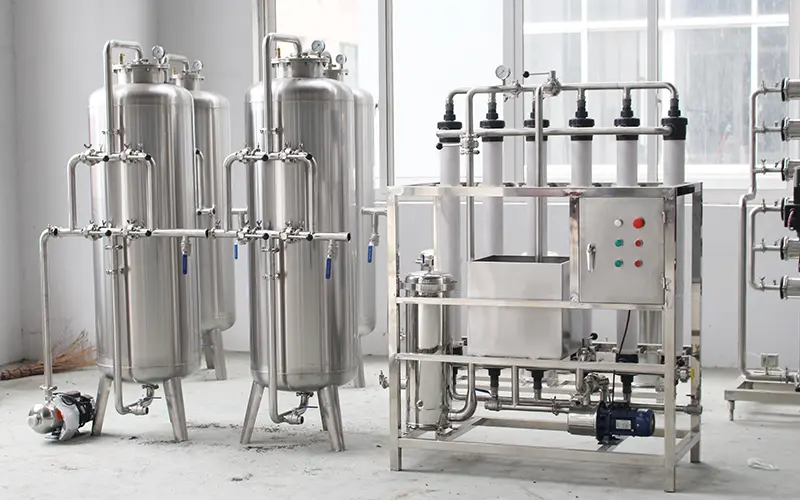

1. 2-Ton Reverse Osmosis (RO) Water Treatment System

Function: Produces pure water essential for drinking water standards.
This system removes impurities, dissolved solids, and bacteria from the source water. For a small to medium plant, a 2-ton per hour RO system is the standard entry point.

FDA guidelines for bottled water

2-Ton per hour Reverse Osmosis water treatment system for bottling plant

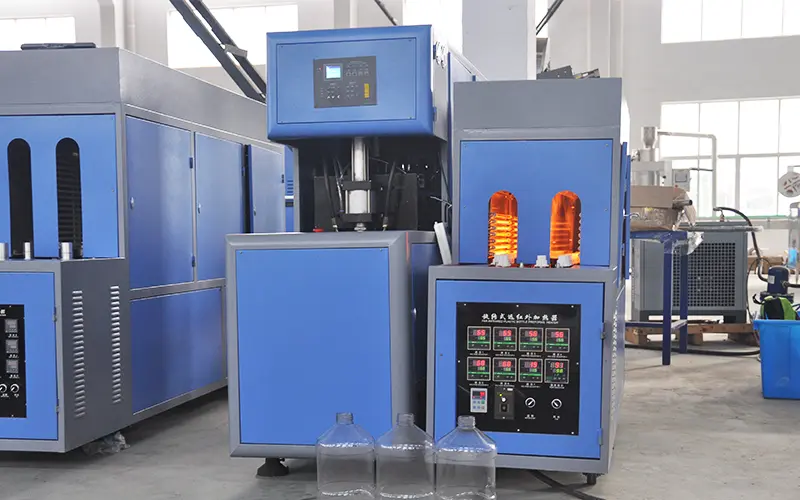

2. Semi-Automatic 2-Cavity Bottle Blowing Machine

Function: Produces 1,000 to 1,500 bottles per hour.
This machine is versatile, suitable for bottle volumes ranging from 100ml to 2000ml. The semi-automatic nature reduces the initial machinery cost significantly compared to fully automatic reheat stretch blow molding machines.

Semi automatic 2 cavities bottle blowing machine for PET bottles

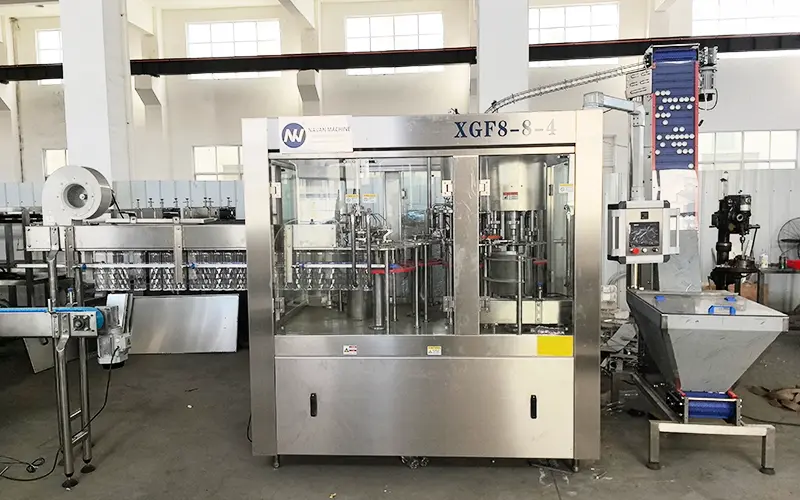

3. Automatic Rinsing, Filling & Capping Machine (XGF8-8-4 Monoblock)

Function: Combines three critical processes in one compact structure.
The Monoblock integrates bottle rinsing, filling, and capping. The model XGF8-8-4 is a standard configuration for this capacity range. It ensures hygiene and efficiency without taking up too much floor space.

XGF8-8-4 automatic rinsing filling capping monoblock for water bottling plant

4. Semi-Automatic Shrink Sleeve Labeling Machine

Function: Applies shrink sleeves or labels to the bottles.
While automatic labeling machines are available, opting for a semi-automatic version here helps keep the initial water bottling plant cost manageable while maintaining professional packaging quality.

Semi automatic shrink sleeve labeling machine for plastic bottles

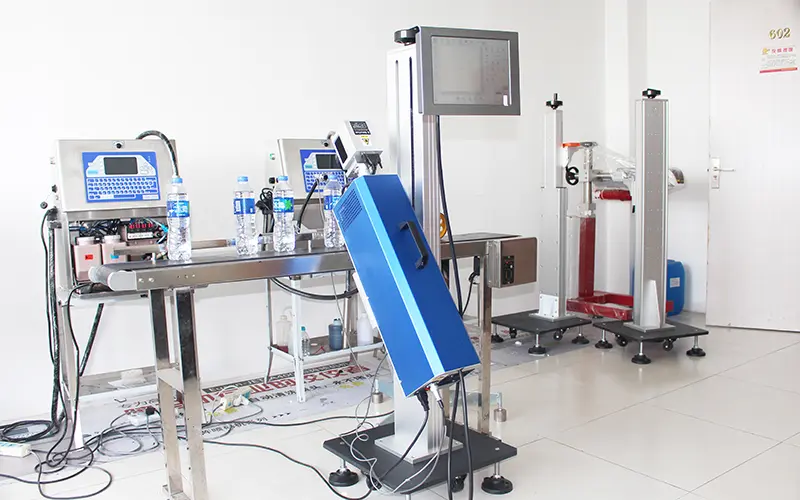

5. Automatic Laser Printer (Laser Coder)

Function: Prints production dates, batch numbers, and expiry dates.
Laser printers offer a permanent, smudge-proof marking solution. Unlike inkjet printers, they require no consumable ink, making them cost-effective in the long run.

Automatic laser printer for date coding on water bottles

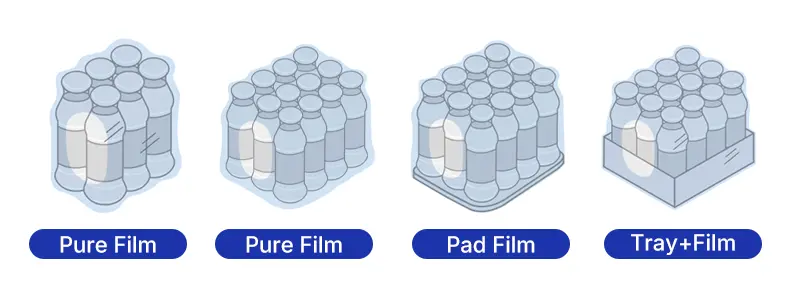

6. Semi-Automatic PE Film Wrapping Machine

Function: Wraps finished bottles into packs for distribution.
This machine groups the finished bottles and wraps them in stretch film, preparing them for storage and transport. A semi-automatic model reduces manual labor for palletizing and packaging.

Semi automatic PE film wrapping machine for bottled water packaging

Total Cost Analysis

water bottling line lowest cost
Component Type Cost Contribution
RO Water Treatment 2 Tons/Hr ~$10,000 – $15,000
Bottle Blowing Semi-Auto, 2 Cavities ~$9,000 – $12,000
Filling Monoblock XGF8-8-4 ~$12,000 – $18,000
Labeling & Coding Semi-Auto + Laser ~$6,000 – $8,000
Packaging Semi-Auto Wrapping ~$6,500 – $8,000
Total Estimate Turnkey Solution Starting at $58,000 USD

Note: Prices vary depending on bottle volume specifications, voltage requirements, and optional accessories.

Important Considerations for Your Budget

While the machinery cost is the headline number, do not forget to account for:

  1. Shipping & Logistics: International freight, insurance, and customs clearance.

  2. Installation & Commissioning: Engineer fees for on-site setup (if not included).

  3. Spare Parts: A starter kit of wear-and-tear parts is recommended.

  4. Training: Operator training costs to ensure maximum efficiency.

Conclusion: Is This the Right Solution for You?

The water bottling plant cost for a semi-automatic line is an excellent entry point for businesses in regions with affordable labor. It provides a perfect balance of quality (via the automatic filling monoblock) and cost savings (via semi-automatic auxiliary equipment).

This is the most affordable combination solution available. However, we understand that every business has unique needs. If you require higher automation, different capacities, or specific packaging styles, we have other customized solutions available.

📞 Get Your Custom Quote

We offer various configurations to fit your specific market needs. Please contact us first to discuss your production goals, budget, and bottle specifications to receive a tailored proposal.
