Production stability is key to profitability. Our carbonated drink filling machine combines heavy-duty durability with intelligent automation to minimize downtime. From craft sodas to large-scale plants, our carbonated filling machine provides the technical edge to keep you ahead.
Select product requirements by clicking.
Equipped with an electronically controlled long-tube CO2 replacement system. By achieving ultra-low dissolved oxygen (DO) levels—as low as 30ppb—we maximize your beer’s freshness, extending its record shelf life to 118 days.
By adopting advanced iso-pressure (iso-barometric) filling technology, the XGFD delivers superior stability compared to industry-standard machines. This ensures a smoother flow and higher output, allowing you to outpace the competition in production volume.
Designed as a multi-purpose carbonated drink filling machine, it is the perfect solution for carbonated soft drinks (CSDs), soda water, and sparkling water. The system maintains consistent carbonation levels and prevents liquid loss during high-speed operation.
Our specialized pressure-control system ensures more stable filling than same-level machines on the market. This reliability translates to fewer stoppages, consistent fill levels, and a significantly higher ROI for your bottling facility.
This equipment is designed to handle various liquids, including:
Advanced Bottle Grippers: Specialized SUS304 grippers hold the PET bottle by the neck, preventing body deformation during the high-pressure rinse.
Sanitary Spray Nozzles: Efficiently cleans the interior with a dedicated rinse-water recovery system to reduce water consumption.

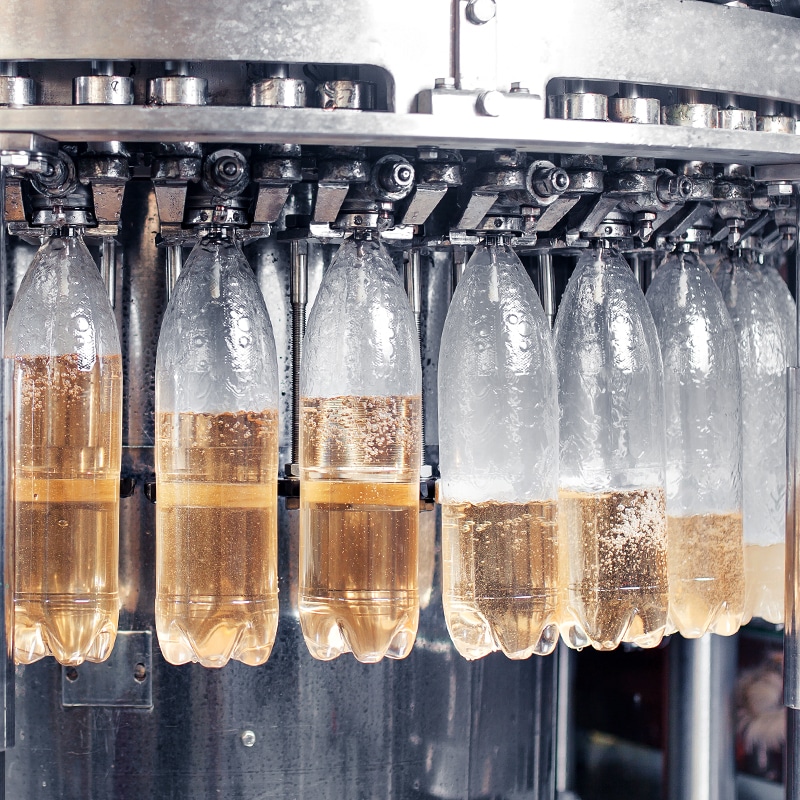

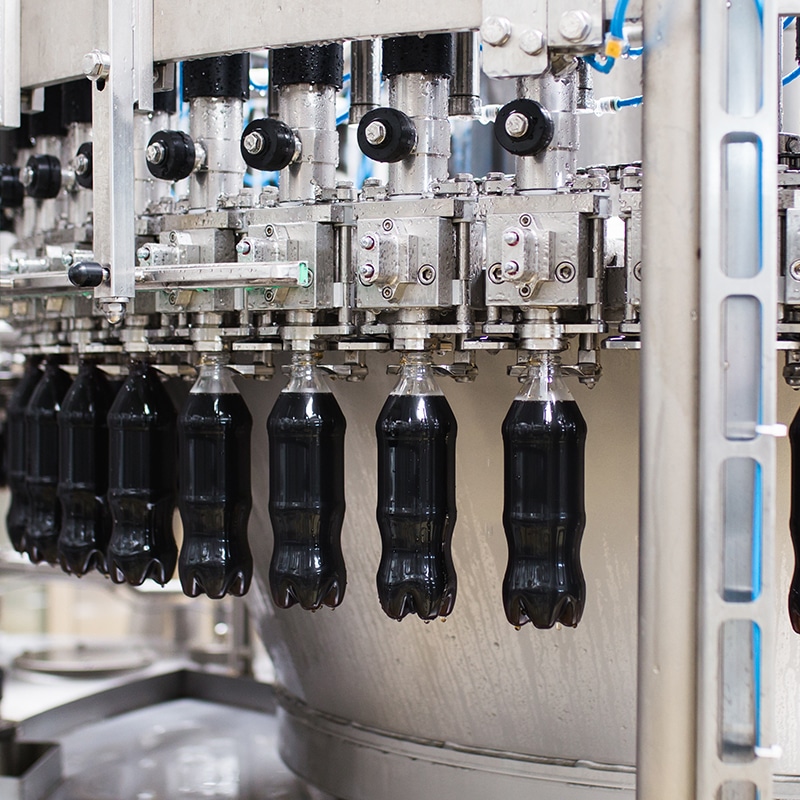

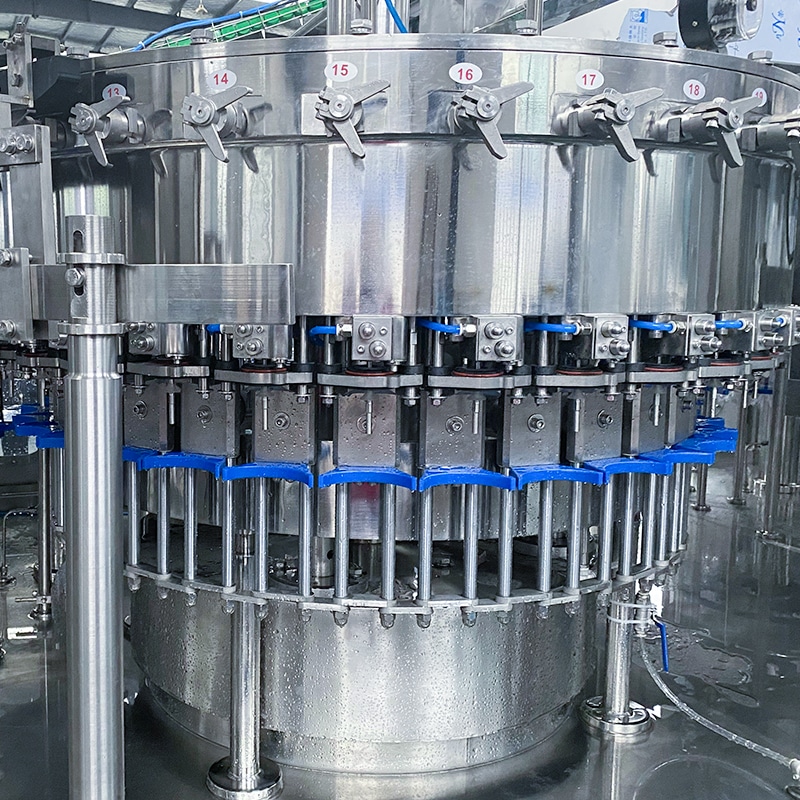

Iso-pressure Technology: The carbonated filling machine uses balanced pressure to ensure smooth flow, eliminating foam and stabilizing CO2 levels.
Accurate Level Control: Features a proportional membrane valve that achieves a filling precision of ±2mm, reducing product waste.
Precision Screw Capping: Designed for plastic screw caps, using magnetic torque to ensure a leak-proof seal without over-tightening.
“No Bottle, No Cap”: Intelligent sensors and an automatic cap elevator ensure that every bottle is sealed perfectly with zero wastage.
Precision Engineering for the Perfect Carbonation Delivering a high-quality carbonated beverage requires more than just filling; it requires precise pressure management and minimal gas loss. Our PET carbonated filling machine is engineered specifically for the carbonated soft drink (CSD) industry. Utilizing advanced isobaric technology, this integrated 3-in-1 system handles rinsing, filling, and capping with unmatched speed and consistency, ensuring your beverages maintain their sparkle from production to the consumer’s hand.
| Model | XGFD 8-8-3/4 | XGFD 14-12-5 | XGFD 18-18-6 | XGFD 24-24-8 | XGFD 32-32-10 | XGFD 40-40-10/12 | XGFD 50-50-12/15 | XGFD 60-60-15 |
|---|---|---|---|---|---|---|---|---|
| Production Capacity(500ml) | 800~1000BPH | 2000~2500BPH | 4000~5000BPH | 7000~8000BPH | 9000~10000BPH | 15000~16000BPH | 19000~20000BPH | 22000~24000BPH |
| Suitable Bottle Specification | Volume=100~2000ml Diameter φ50~100mm Bottle Height H=150~340mm Volume=100~2500ml Diameter φ50~115mm Bottle Height H=150~350mm |
|||||||
| Bottle Neck/ Cap Style | Plastic Screw Cap φ=20~50mm | |||||||
| Main Power(Kw) | 1.9 | 3.5 | 4 | 4.8 | 5.5 | 7.5 | 11 | 15 |
| Power Supply | Voltage:220V~480V, 3phase; Frequency: 50HZ/ 60HZ or your requirement | |||||||
| Overall Dimensions(mm) | 1900x1420x2000 | 2050x1800x2400 | 2580x2100x2200 | 2780x2200x2200 | 3800x2800x2600 | 4600x2800x2600 | 5450x3300x2600 | 6500X4500X2600 |
| Weight(kg) | 1500 | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 | 12800 |
We provide complete turnkey solutions for production lines, including designing, manufacturing, installation, commissioning and training.
If the video does not display, please refresh the page or visit our YouTube channel.

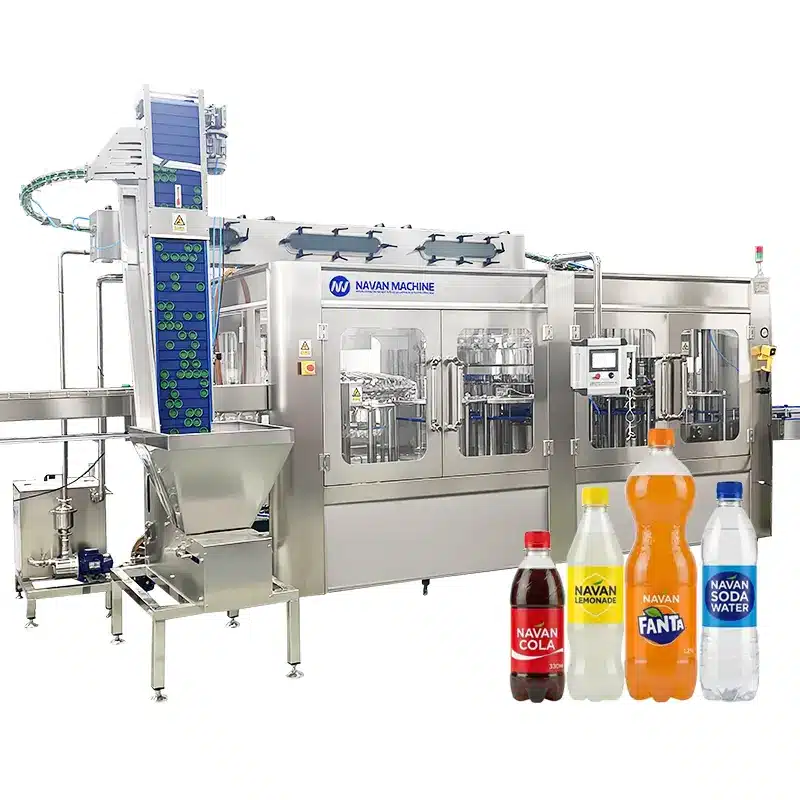

High-Performance PET Carbonated Drink Filling Line
See the XGFD series in action: a high-speed 3-in-1 monoblock designed for sodas and sparkling water. Featuring iso-barometric filling technology for stable CO2 levels and precision plastic screw capping, this system ensures maximum efficiency, zero foaming, and perfect pressure retention for every PET bottle.
Click the button below to see the detailed description.
We select the ideal water treatment solution based on your water source analysis and required water quality—helping you reduce material usage and maintenance costs.
Our advanced purification systems turn raw water into premium pure water, mineral water, and drinking water with consistent quality. From groundwater and mountain springs to rivers, wells, and lakes, our technology ensures reliable treatment across diverse water sources.
Our PET bottle blowing machine is designed for producing high-quality PET plastic containers and bottles. It is widely used for manufacturing carbonated drink bottles, mineral water bottles, oil bottles, pesticide bottles, cosmetics bottles, wide-mouth jars, and more.
With our fully automatic blow molding system, you can easily produce PET bottles in a wide range of shapes and specifications with high efficiency and consistent quality.
This integrated machine combines washing, filling, and capping functions in a single unit. Its spiral design significantly enhances production speed.
Bottle size adjustment is simple and quick, allowing format changes to be completed within 30 minutes.
The entire machine is controlled by an advanced PLC system, with critical electrical components from internationally renowned brands, ensuring reliable and stable operation.
The conveyor belt, dryer, and coding system of the filling machine work in coordination to ensure smooth bottle handling and optimal production efficiency. Bottles are transported precisely along the conveyor belt, thoroughly dried by a high-efficiency dryer to remove residual moisture, and then accurately positioned for coding or filling.
This integrated process minimizes contamination, reduces moisture residue, ensures consistent product quality, and maintains high production speeds.
Navan labeling and sleeving machines feature a unique composite cutter design combined with premium steel materials, ensuring smooth operation while doubling cutter lifespan.
Their simple center-guide positioning design allows users to easily change specifications with straightforward operation. The first conveyor belt is driven by a brushless DC motor, featuring a well-structured design that is easy to maintain and delivers reliable performance.
This machine is specifically designed for fully automated packaging lines handling products such as beer, beverages, purified water, juice, and dairy products.
It automates the entire process, including bottle conveying and alignment, film wrapping, sealing and cutting, shrinking, cooling, and molding.
The system employs advanced constant-temperature film heat-sealing technology, ensuring clear, strong, and reliable sealing.
The palletizer automatically stacks packaged products (such as cartons, bags, or drums) onto designated empty pallets according to preset sequences.
This mechanized process simplifies product handling and transportation, improving overall production efficiency.
Additionally, interlayer sheets can be added to enhance the stability of each stacked layer. The equipment is designed with flexibility, allowing adjustments to meet various palletizing requirements based on different production needs and configurations.
Navan Machine, Since 2010s, is a professional manufacturer specializing in customized water filling machine. With more than a decade of experience, we have proudly served customers in 42 countries and regions worldwide.
No middlemen – preferential terms and reliable partnerships.
Design, manufacturing, delivery, and installation – all handled by the same supplier.
Experience working with over 40 countries.
Provides components and technical support, with rapid delivery.
The right capacity depends on your factory size, market demand, and budget. For small to medium operations, 2,000-12,000 BPH is recommended. For large-scale production, 12,000-24,000 BPH models are suitable. We can provide a detailed capacity analysis based on your specific requirements.
We implement strict QC procedures, including machining accuracy checks, assembly precision inspection, sampling of electrical components, and FAT & SAT testing to guarantee reliable machine performance.
Standard delivery time is 25-60 days depending on configuration and customization requirements. Standard models can be delivered in 25-35 days, while customized turnkey solutions may take 45-60 days.
We offer 24/7 online technical support, on-site installation and commissioning, operator training, and long-term spare parts supply.
Standard purchased parts: shipped within 24 hours by air express.
Non-standard parts: shipped within 48 hours or technical drawings provided for local processing.
Urgent cases: manual delivery can be arranged.
Yes, we provide comprehensive training for your staff both at our factory and on-site after installation. The training covers operation, maintenance, troubleshooting, and safety procedures. We also provide detailed operation manuals and video tutorials in multiple languages.
