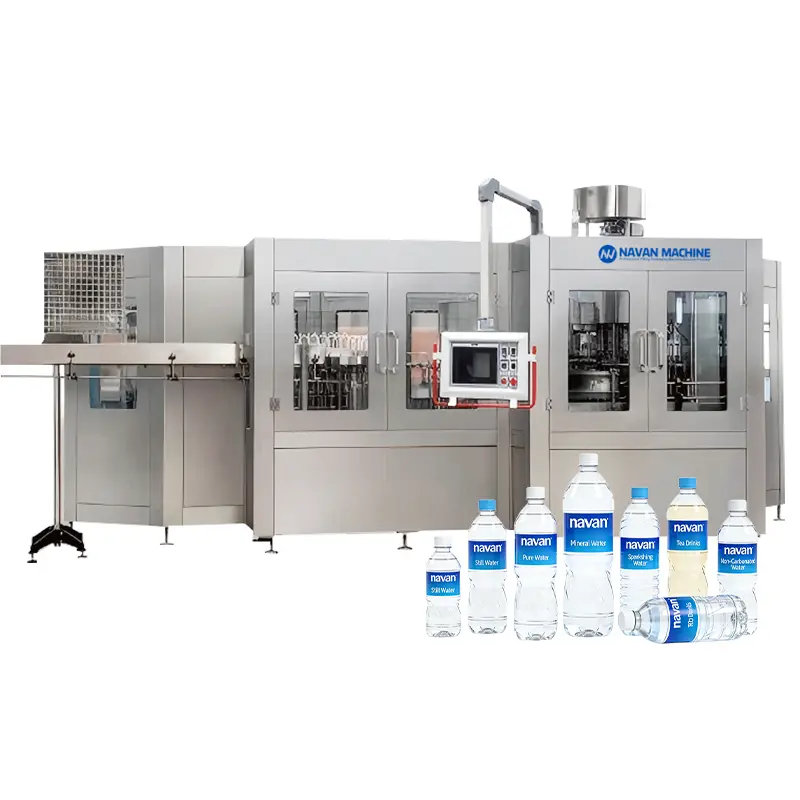

XGF Series 3-in-1 PET Bottle Water Filling Machine

Name: 200-2000ml PET Bottle Water Filling Machine
Price: 150000.00 USD
Availability: InStock

As a professional manufacturer, we provide the XGF series pet bottle water filling machine. This 3-in-1 system integrates rinsing, filling, and capping functions, delivering stable capacities from 2500 up to 36000 BPH.

Select product requirements by clicking.

Container Material

PET Bottles

Production Capacity

2,500~3,000BPH
5,000BPH
6,000~7,000BPH
10,000~12,000BPH
16,000~17,000BPH
19,000~20,000BPH
23,000~24,000BPH
34,000~36,000BPH

Container Capacity

200-2000ml

Clear

Expect a response:

Advantages

Integrated 3-in-1 Monoblock Technology

This water bottle filling machine combines washing, filling, and capping, significantly reducing the factory footprint and labor costs.

Superior SUS304 Construction

The entire pet bottle water filling machine is made of SUS304 stainless steel to ensure a clean and durable production process.

Advanced Dripless Filling Design

Our PET bottle water filling machine features spring-type filling heads designed without dead angles to prevent dripping and contamination.

Versatile Bottle Compatibility

The holding clap model used in this pet bottle water filling machine allows for easy changes between different bottle shapes and volumes.

XGF Series 3-in-1 PET Bottle Water Filling Machine Applications

This equipment is designed to handle various liquids, including:

Still Water
Pure Water
Mineral Water
RO Water
Tea Drinks
Non-carbonated Flavored Water

Product Details

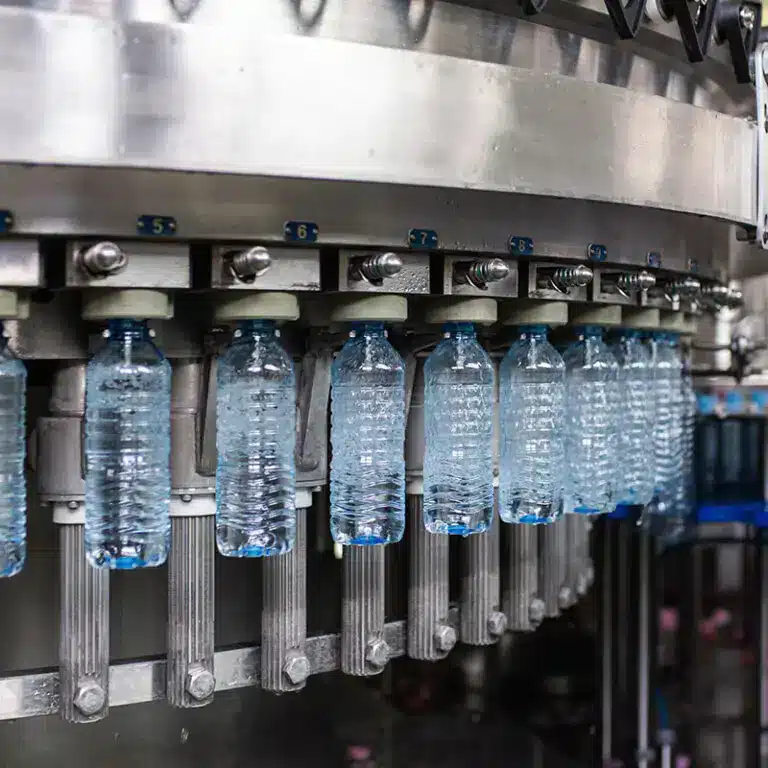

Advanced Rinsing with CIP Integration

The rinsing unit of this PET filling machine features high-strength grippers that hold bottles firmly for thorough internal cleaning. To ensure maximum hygiene, the system supports connection to a CIP (Clean-in-Place) system for automatic sterilization.

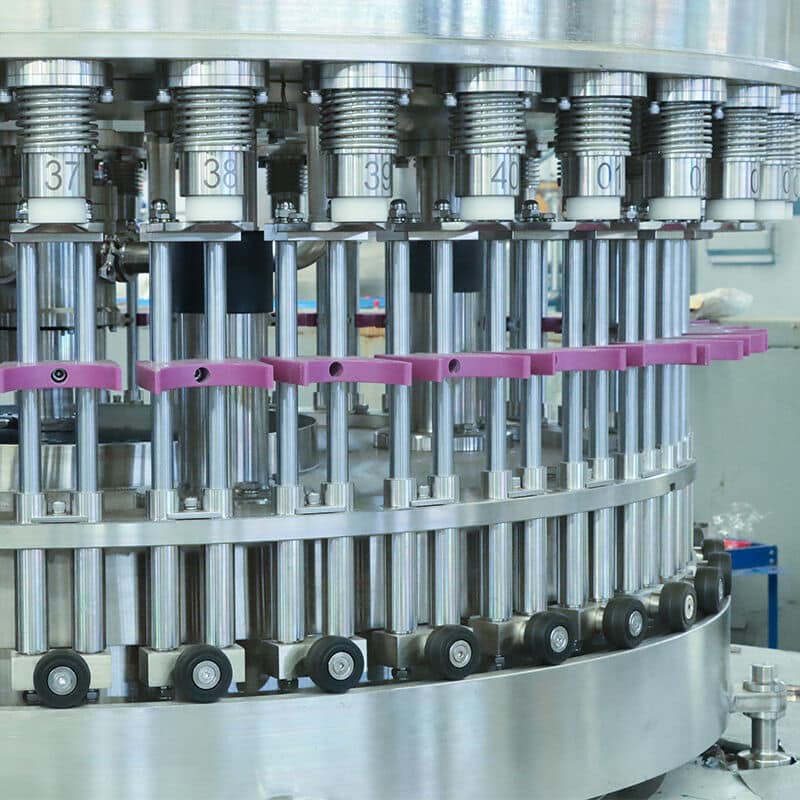

High-Precision Filling Options

As a versatile PET bottle filling machine, it typically utilizes mechanical valves for stable operation. For clients requiring ultra-high accuracy, we offer advanced upgrades such as flow meter filling technology to ensure precise liquid levels in every bottle.

Versatile Capping for Plastic Caps

The capping station of the machine is designed for flexibility, supporting a wide range of plastic screw caps from 20mm to 50mm in diameter. This ensures a secure, leak-proof seal for various bottle neck specifications.

Machine Parameters

The XGF series is a versatile pet bottle water filling machine solution designed to meet diverse production demands. Ranging from the XGF8-8-4 to the XGF60-60-15, it supports bottle volumes from 100ml up to 2500ml. With a heavy-duty design reaching up to 12800kg, this pet bottle water filling machine ensures stable, high-speed operation for mineral and sparkling water plants.

3-in-1 design — rinsing, filling, and capping in one machine to save space and labor.
Spring-type filling heads — accurate, drip-free filling for high hygiene.
Quick changeover — accommodates different bottle shapes with the same neck finish.
Food-grade stainless steel — SUS304 for safety, durability, and corrosion resistance.
Accurate level control — mechanical valve with return pipe; optional flowmeter for easy volume change.
Optimized for large bottles — valves with level sensors maintain stable fills.
Automatic bottle rinsing — electronic valve system cleans without operator input.
High-precision capping — constant-torque magnetic heads give consistent results with low waste.
Full sterilization — CIP system for thorough internal cleaning and sanitizing.

Model	XGF 8-8-4	XGF 14-12-5	XGF 18-18-6	XGF 24-24-8	XGF 32-32-10	XGF 40-40-12	XGF 50-50-15	XGF 60-60-15
Production Capacity (500ml)	2,500~3,000 BPH	5000 BPH	6,000~7,000 BPH	10,000~12,000 BPH	16,000~17,000 BPH	19,000~20,000 BPH	23,000~24,000 BPH	34,000~36,000 BPH
Suitable Bottle Specification	Volume: 100–2000ml Diameter: φ50–100mm Height: 150–340mm Volume: 100–2000ml Diameter: φ50–115mm Height: 150–350mm
Bottle Neck / Cap Style	Plastic Screw Cap φ20–50mm
Main Power (KW)	1.9	3.5	4.0	4.8	5.5	7.5	11	15
Power Supply	Voltage: 220V–480V / 3 Phase / Frequency:50Hz or 60Hz or your requirement
Overall Dimensions (mm)	190014202000	205018002400	258021002200	278022002200	380028002600	460028002600	545033002600	650045002600
Weight (kg)	1500 kg	2500 kg	3500 kg	4500 kg	6500 kg	8500 kg	9800 kg	12800 kg

Turnkey Solution

We provide complete turnkey solutions for mineral water production lines, including
design, manufacturing, installation, commissioning, and training.

<br />

If the video does not display, please refresh the page or visit our YouTube channel.

This video showcases the complete working process of the XGF series bottle water filling machine . If you are interested, we can calculate the following data to help you reduce costs and improve efficiency:

Required workshop size
Power consumption
Water consumption
Staff required

Obtain Services

Complete Line Workflow

Click the button below to see the detailed description.

Water Treatment System

We select the ideal water treatment solution based on your water source analysis and required water quality—helping you reduce material usage and maintenance costs.

Our advanced purification systems turn raw water into premium pure water, mineral water, and drinking water with consistent quality. From groundwater and mountain springs to rivers, wells, and lakes, our technology ensures reliable treatment across diverse water sources.

Bottle Blowing Machine

Our PET bottle blowing machine is designed for producing high-quality PET plastic containers and bottles. It is widely used for manufacturing carbonated drink bottles, mineral water bottles, oil bottles, pesticide bottles, cosmetics bottles, wide-mouth jars, and more.

With our fully automatic blow molding system, you can easily produce PET bottles in a wide range of shapes and specifications with high efficiency and consistent quality.

3-in-1 Filling Machine

This integrated machine combines washing, filling, and capping functions in a single unit. Its spiral design significantly enhances production speed.

Bottle size adjustment is simple and quick, allowing format changes to be completed within 30 minutes.

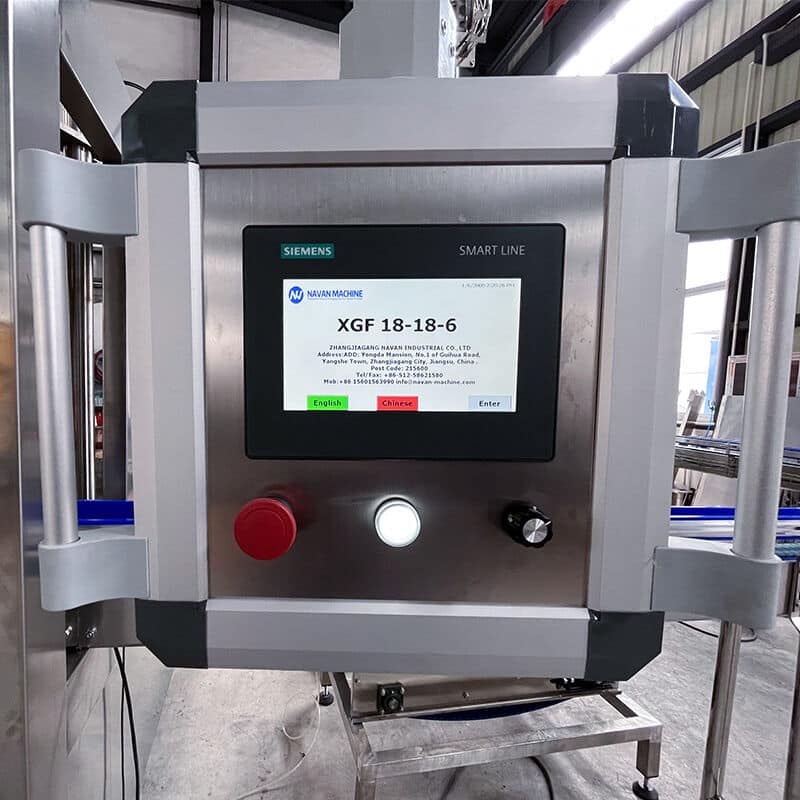

The entire machine is controlled by an advanced PLC system, with critical electrical components from internationally renowned brands, ensuring reliable and stable operation.

Conveying, Drying and Coding

The conveyor belt, dryer, and coding system of the filling machine work in coordination to ensure smooth bottle handling and optimal production efficiency. Bottles are transported precisely along the conveyor belt, thoroughly dried by a high-efficiency dryer to remove residual moisture, and then accurately positioned for coding or filling.

This integrated process minimizes contamination, reduces moisture residue, ensures consistent product quality, and maintains high production speeds.

Labeling and Sleeving Machines

Navan labeling and sleeving machines feature a unique composite cutter design combined with premium steel materials, ensuring smooth operation while doubling cutter lifespan.

Their simple center-guide positioning design allows users to easily change specifications with straightforward operation. The first conveyor belt is driven by a brushless DC motor, featuring a well-structured design that is easy to maintain and delivers reliable performance.

Film Wrapping and Cartoning Machines

This machine is specifically designed for fully automated packaging lines handling products such as beer, beverages, purified water, juice, and dairy products.

It automates the entire process, including bottle conveying and alignment, film wrapping, sealing and cutting, shrinking, cooling, and molding.

The system employs advanced constant-temperature film heat-sealing technology, ensuring clear, strong, and reliable sealing.

Palletizing and Depalletizing

The palletizer automatically stacks packaged products (such as cartons, bags, or drums) onto designated empty pallets according to preset sequences.

This mechanized process simplifies product handling and transportation, improving overall production efficiency.

Additionally, interlayer sheets can be added to enhance the stability of each stacked layer. The equipment is designed with flexibility, allowing adjustments to meet various palletizing requirements based on different production needs and configurations.

About Navan

Navan Machine, Since 2010s, is a professional manufacturer specializing in customized water filling machine. With more than a decade of experience, we have proudly served customers in 42 countries and regions worldwide.

Factory Direct Pricing

No middlemen – preferential terms and reliable partnerships.

Complete Production Cycle

Design, manufacturing, delivery, and installation – all handled by the same supplier.

Global Export and Installation

Experience working with over 40 countries.

Fast Delivery of Spare Parts and Technical Support

Provides components and technical support, with rapid delivery.

Frequently Asked Questions

How do l choose the right capacity?

The right capacity depends on your factory size, market demand, and budget. For small to medium operations, 2,000-12,000 BPH is recommended. For large-scale production, 12,000-24,000 BPH models are suitable. We can provide a detailed capacity analysis based on your specific requirements.

How do you ensure product quality?

We implement strict QC procedures, including machining accuracy checks, assembly precision inspection, sampling of electrical components, and FAT & SAT testing to guarantee reliable machine performance.

How long does delivery take?

Standard delivery time is 25-60 days depending on configuration and customization requirements. Standard models can be delivered in 25-35 days, while customized turnkey solutions may take 45-60 days.

What kind of after-sales service do you provide?

We offer 24/7 online technical support, on-site installation and commissioning, operator training, and long-term spare parts supply.

How fast can you supply spare parts?

Standard purchased parts: shipped within 24 hours by air express.
Non-standard parts: shipped within 48 hours or technical drawings provided for local processing.
Urgent cases: manual delivery can be arranged.

Do you provide installation and training?

Yes, we provide comprehensive training for your staff both at our factory and on-site after installation. The training covers operation, maintenance, troubleshooting, and safety procedures. We also provide detailed operation manuals and video tutorials in multiple languages.
