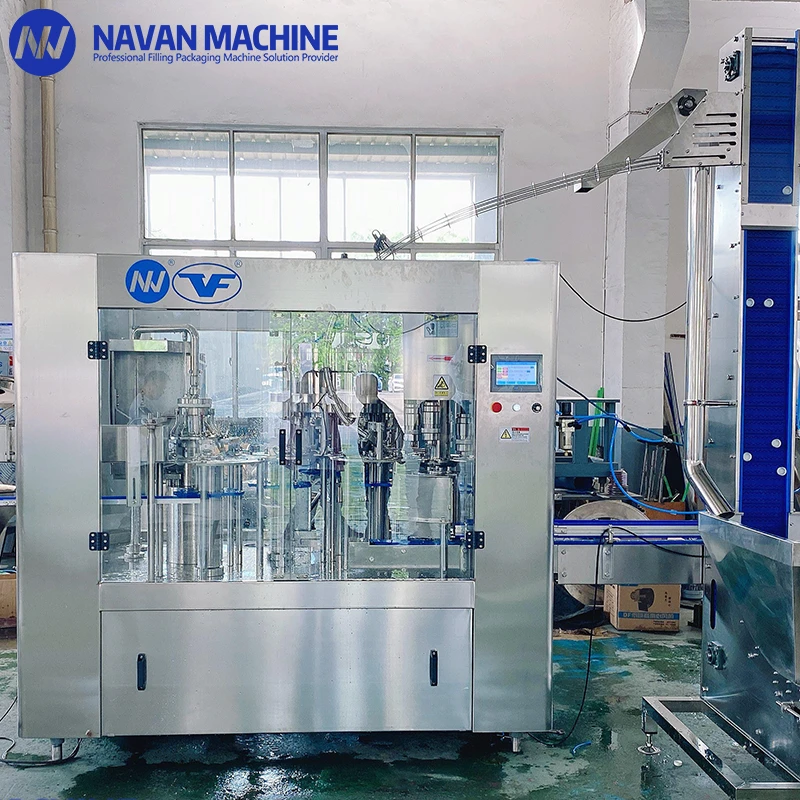

XGFD8-8-3/4 NAVAN Automatic Carbonated Beverage Filling Machine for 200-2000ml PET Bottles

Name: XGFD8-8-3/4 NAVAN Automatic Carbonated Beverage Filling Machine for 200-2000ml PET Bottles - Navan
Price: 12000.00 USD
Availability: InStock

This NAVAN automatic carbonated beverage filling machine is designed for PET bottles, supporting 200-2000ml capacities. It features ≥99.7% filling accuracy, SUS304 stainless steel construction, and a fully automated rinsing-filling-capping process, ideal for soda and sparkling drinks.

Select product requirements by clicking.

Production

800-1000BPH

Container material

PET bottle

Container Capacity

200-2000ml

Clear

Expect a response:

Avantages

3in1 icon

High-Precision Filling & CO₂ Preservation

Equipped with advanced micro-negative pressure/gravity filling technology, the machine achieves ≥99.7% filling accuracy while effectively preventing CO₂ loss, preserving the original taste and carbonation of beverages.

Durable SUS304 Stainless Steel Construction

Made of high-quality SUS304 stainless steel, the machine is corrosion-resistant, rust-proof, and easy to clean, ensuring long-term stable operation in food-grade beverage production environments.

bottle icon

Fully Automatic & PLC-Controlled Operation

The integrated bottle feeding, washing, filling, and capping process is controlled by a PLC system, enabling simple parameter setting, real-time monitoring, and reduced manual errors to boost production efficiency.

Versatile Compatibility & Easy Maintenance

Suitable for PET bottles (100-2000ml/2500ml) with diameters of 50-115mm, the machine features detachable parts for easy cleaning, maintenance, and quick changeovers between different bottle specifications.

Application of the three-in-one carbonated drink filling machine

This equipment is designed to process a variety of carbonated beverages, including:

Lemon juice soda
soda drinksApple soda

Product Details

Carbonated beverage filling machine

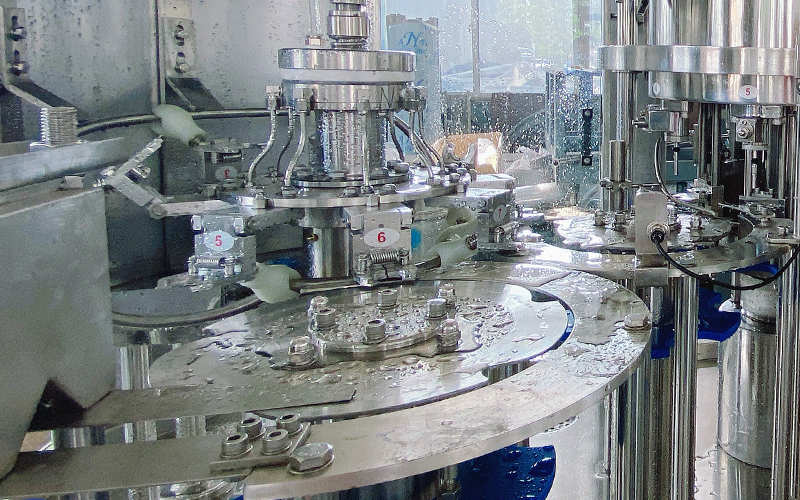

Rinsing Section

The automatic bottle washing system thoroughly rinses PET bottles with clean water, removing impurities and ensuring food-grade hygiene standards. The design prevents bottle deformation during washing, suitable for various bottle sizes.

PET bottle soda filling machine

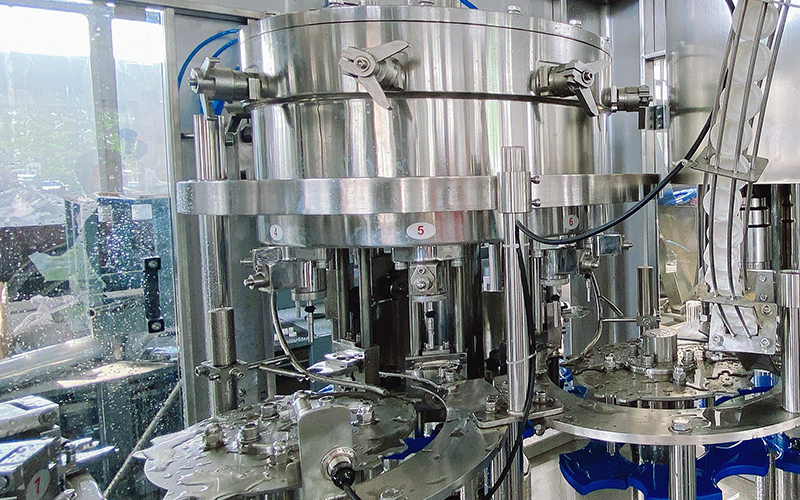

Filling Section

The filling section uses micro-negative pressure or gravity filling technology to maintain stable pressure inside bottles, preventing CO₂ loss and ensuring consistent filling volume. High-precision valves guarantee accurate dosing from 200ml to 2000ml.

Automatic carbonated drink bottling machine

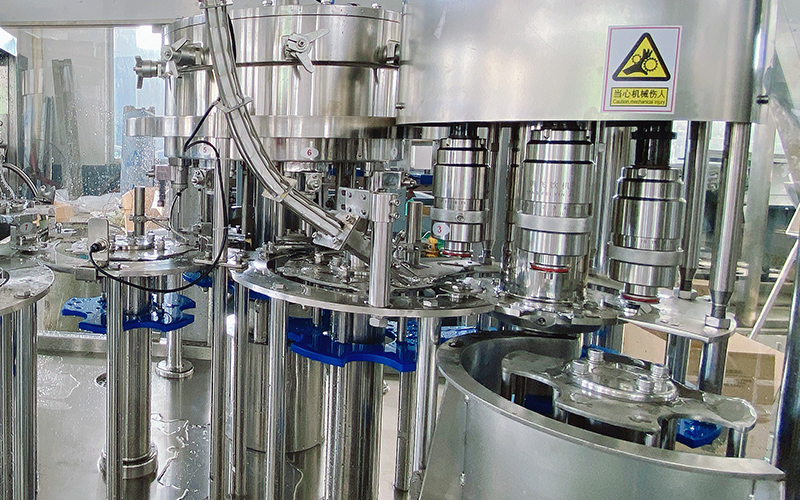

Capping Section

The capping unit efficiently applies plastic screw caps (φ20-50mm) with adjustable torque, ensuring tight, leak-proof seals to preserve beverage freshness and carbonation. The system is compatible with various cap styles for flexible production.

Machine parameters

The NAVAN XGFD 8-8-3/4 Automatic Carbonated Beverage Filling Machine is a high-efficiency, cost-effective solution for small to medium-scale plastic bottle carbonated beverage production. Designed for soda, sparkling water, and other carbonated drinks, this 3-in-1 machine integrates bottle washing, filling, and capping into one compact unit.

Constructed with food-grade SUS304 stainless steel, the machine ensures durability, easy cleaning, and compliance with international safety standards. The PLC-controlled system offers user-friendly operation, real-time monitoring, and minimal manual intervention, reducing labor costs and human errors. With a production capacity of 800-1000BPH (for 500ml bottles) and compatibility with 200ml-2000ml PET bottles, it adapts to diverse production needs.

Using advanced micro-negative pressure or gravity filling technology, the machine maintains beverage carbonation with ≥99.7% filling accuracy. Its modular design allows easy maintenance, while the 1.9kW power system supports 220V-480V, 3-phase power supply (50/60Hz). CE-certified and backed by 1-year warranty and video technical support, this machine is ideal for beverage factories, small processing workshops, and catering enterprises seeking reliable, energy-efficient carbonated drink bottling equipment.

Item	Details
Model	XGFD 8-8-3/4
Filled Products	Carbonated beverages
Filling Volume	200ml~2000ml
Production Capacity (500ml)	800-1000BPH
Suitable Bottle Specs	Volume: 100~2000ml/2500ml; Diameter: φ50~100mm/φ50~115mm; Height: 150~340mm/150~350mm
Bottle Neck/Cap Style	Plastic Screw Cap φ20~50mm
Voltage	220V~480V, 3phase; 50Hz/60Hz (customizable)
Main Power	1.9 Kw
Filling Accuracy	≥99.7%
Overall Dimensions (LWH)	1900×1420×2200 mm
Weight	1500 KG
Automation Level	Automatic
Core Components	Motor, Pressure Vessel, Pump, PLC, Gears, Bearings, Gearbox, Engine
Material	SUS304 Stainless Steel (food-grade)
Warranty	1 Year
After-sales Support	Video technical support, online support
Origin	Jiangsu, China
Brand	NAVAN
Certification	CE

If the video does not display, please refresh the page or visit our YouTube channel.

Turnkey Solution

Machine testing videos are available upon request.

We provide complete turnkey solutions for production lines, including designing, manufacturing, installation, commissioning and training.

Required workshop size
Power consumption
Water consumption
Staff required

Complete Line Workflow

Click the button below to see the detailed description.

Water Treatment System

We select the ideal water treatment solution based on your water source analysis and required water quality—helping you reduce material usage and maintenance costs.

Our advanced purification systems turn raw water into premium pure water, mineral water, and drinking water with consistent quality. From groundwater and mountain springs to rivers, wells, and lakes, our technology ensures reliable treatment across diverse water sources.

Bottle Blowing Machine

Our PET bottle blowing machine is designed for producing high-quality PET plastic containers and bottles. It is widely used for manufacturing carbonated drink bottles, mineral water bottles, oil bottles, pesticide bottles, cosmetics bottles, wide-mouth jars, and more.

With our fully automatic blow molding system, you can easily produce PET bottles in a wide range of shapes and specifications with high efficiency and consistent quality.

3-in-1 Filling Machine

This integrated machine combines washing, filling, and capping functions in a single unit. Its spiral design significantly enhances production speed.

Bottle size adjustment is simple and quick, allowing format changes to be completed within 30 minutes.

The entire machine is controlled by an advanced PLC system, with critical electrical components from internationally renowned brands, ensuring reliable and stable operation.

Conveying, Drying and Coding

The conveyor belt, dryer, and coding system of the filling machine work in coordination to ensure smooth bottle handling and optimal production efficiency. Bottles are transported precisely along the conveyor belt, thoroughly dried by a high-efficiency dryer to remove residual moisture, and then accurately positioned for coding or filling.

This integrated process minimizes contamination, reduces moisture residue, ensures consistent product quality, and maintains high production speeds.

Labeling and Sleeving Machines

Navan labeling and sleeving machines feature a unique composite cutter design combined with premium steel materials, ensuring smooth operation while doubling cutter lifespan.

Their simple center-guide positioning design allows users to easily change specifications with straightforward operation. The first conveyor belt is driven by a brushless DC motor, featuring a well-structured design that is easy to maintain and delivers reliable performance.

Film Wrapping and Cartoning Machines

This machine is specifically designed for fully automated packaging lines handling products such as beer, beverages, purified water, juice, and dairy products.

It automates the entire process, including bottle conveying and alignment, film wrapping, sealing and cutting, shrinking, cooling, and molding.

The system employs advanced constant-temperature film heat-sealing technology, ensuring clear, strong, and reliable sealing.

Palletizing and Depalletizing

The palletizer automatically stacks packaged products (such as cartons, bags, or drums) onto designated empty pallets according to preset sequences.

This mechanized process simplifies product handling and transportation, improving overall production efficiency.

Additionally, interlayer sheets can be added to enhance the stability of each stacked layer. The equipment is designed with flexibility, allowing adjustments to meet various palletizing requirements based on different production needs and configurations.

About Navan

Navan Machine, Since 2010s, is a professional manufacturer specializing in customized water filling machine. With more than a decade of experience, we have proudly served customers in 42 countries and regions worldwide.

Factory Direct Pricing

No middlemen – preferential terms and reliable partnerships.

Complete Production Cycle

Design, manufacturing, delivery, and installation – all handled by the same supplier.

Global Export and Installation

Experience working with over 40 countries.

Fast Delivery of Spare Parts and Technical Support

Provides components and technical support, with rapid delivery.

Frequently Asked Questions

How do l choose the right capacity?

The right capacity depends on your factory size, market demand, and budget. For small to medium operations, 2,000-12,000 BPH is recommended. For large-scale production, 12,000-24,000 BPH models are suitable. We can provide a detailed capacity analysis based on your specific requirements.

How do you ensure product quality?

We implement strict QC procedures, including machining accuracy checks, assembly precision inspection, sampling of electrical components, and FAT & SAT testing to guarantee reliable machine performance.

How long does delivery take?

Standard delivery time is 25-60 days depending on configuration and customization requirements. Standard models can be delivered in 25-35 days, while customized turnkey solutions may take 45-60 days.

What kind of after-sales service do you provide?

We offer 24/7 online technical support, on-site installation and commissioning, operator training, and long-term spare parts supply.

How fast can you supply spare parts?

Standard purchased parts: shipped within 24 hours by air express.
Non-standard parts: shipped within 48 hours or technical drawings provided for local processing.
Urgent cases: manual delivery can be arranged.

Do you provide installation and training?

Yes, we provide comprehensive training for your staff both at our factory and on-site after installation. The training covers operation, maintenance, troubleshooting, and safety procedures. We also provide detailed operation manuals and video tutorials in multiple languages.
