Glass Bottle Juice Filling Machine – 3-in-1 Rinsing Filling Capping Line

Navan automatic glass bottle juice filling machine integrates rinsing, micro-negative pressure/gravity filling and capping in one unit, supporting 1,500-15,000 BPH production with 85℃ hot filling capability. Ideal for juice, tea drinks and other non-carbonated beverages in glass bottles with various caps.

Select product requirements by clicking.

Expect a response:

Advantages

3in1 icon

High Efficiency & Flexible Capacity

Available in 4 models with capacities from 1,500 to 15,000 bottles per hour, meeting both small and large-scale production demands.

More Filling Modes

Supports micro-negative pressure or gravity filling to suit different juice types, preventing foaming and ensuring consistent filling accuracy.

bottle icon

85°C Hot Filling Compatibility

Designed for 85°C hot filling, which helps preserve juice freshness, extend shelf life and reduce the need for preservatives.

Wide Compatibility for Bottles & Caps

Works with glass bottles of 160-340mm height and 50-100mm diameter, and supports aluminum, ring-pull and twist-off caps.

3-in-1 Glass Bottle Juice Filling Machine Applications

This equipment is designed to handle various liquids, including:

Fruit juices
Concentrated juice drinks
Pulp-containing beverages
Tea drinks
Non-carbonated functional drinksFlavored waterVinegar-based beverages

Product Details

juice filling machine- washing part

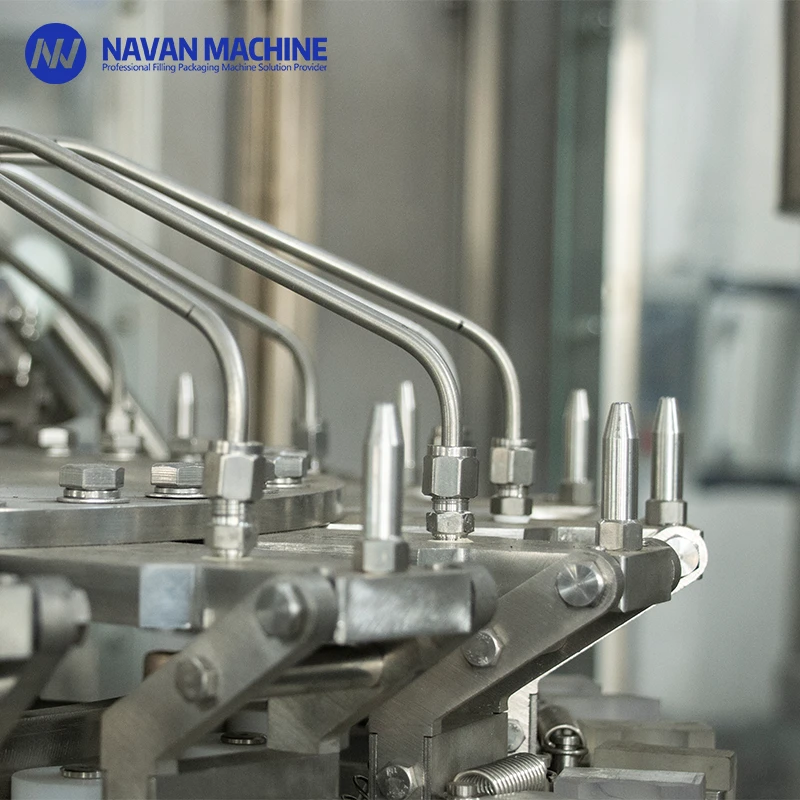

Rotary Bottle Rinse

Equipped with food-grade spray nozzles to clean and sanitize glass bottles, removing residues and contaminants for hygiene compliance.

juice filling machine- filling part

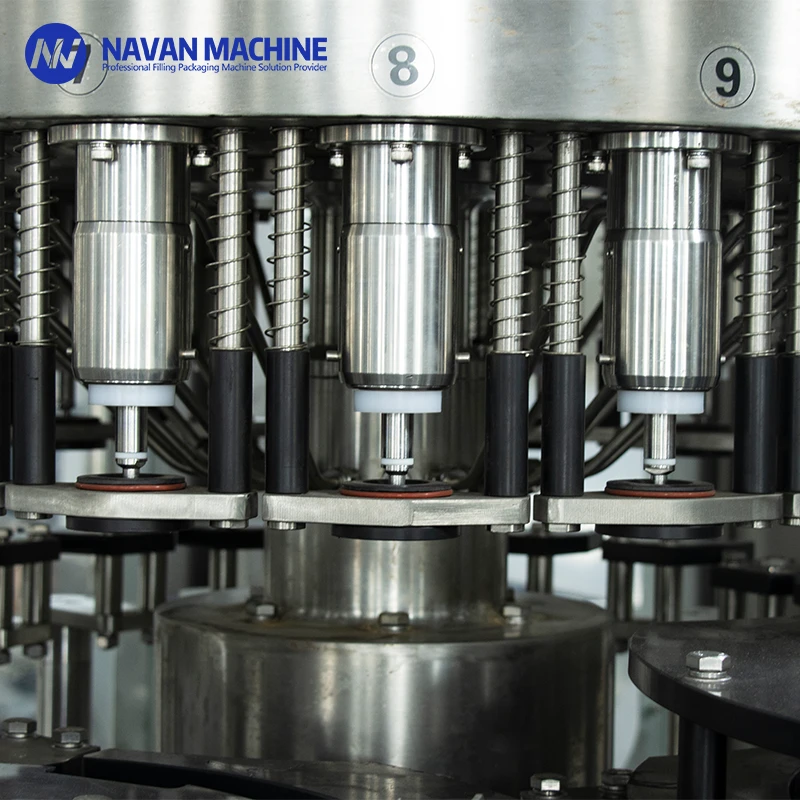

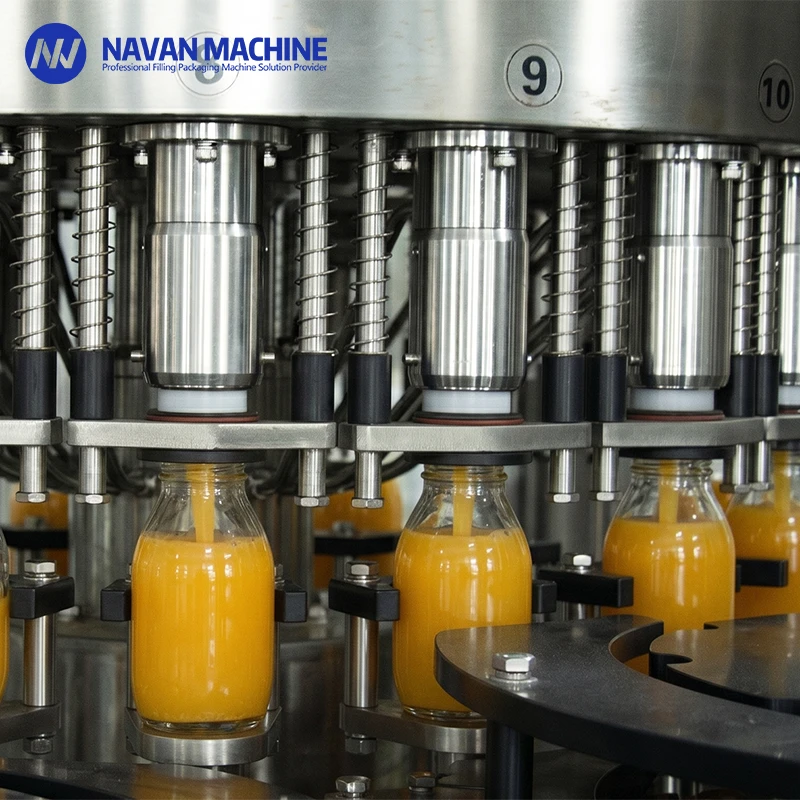

Hot Filling Unit

Uses micro-negative pressure/gravity filling technology with precision valves, maintaining consistent fill levels at 85°C to preserve juice quality.

juice filling machine- capping part

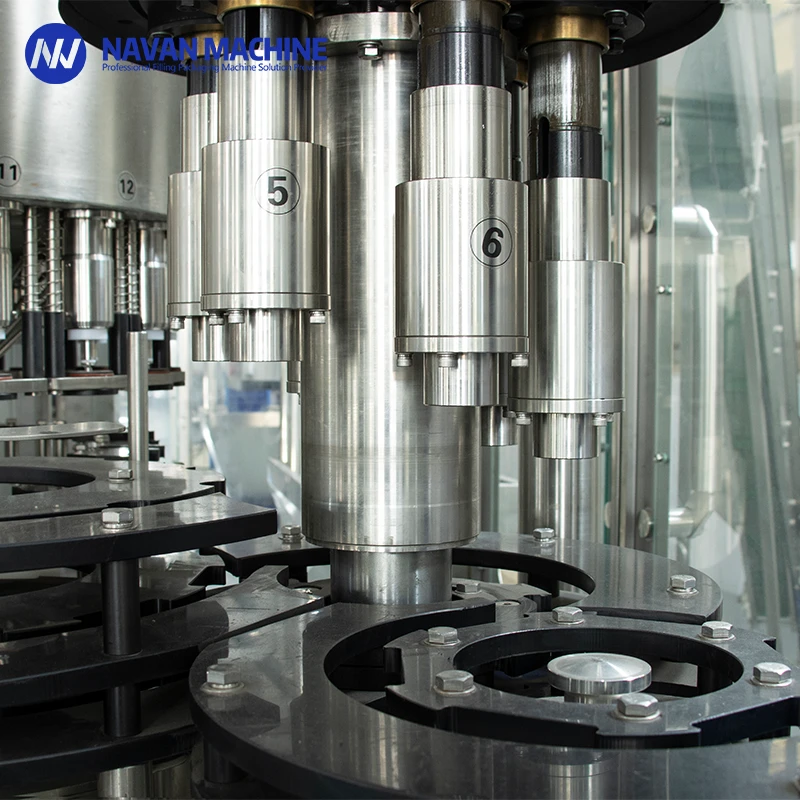

Multi-Head Capper

Supports aluminum, ring pull, and twist-off caps, ensuring leak-proof sealing for glass bottles with adjustable torque control.

Machine Parameters

Our 3-in-1 glass bottle juice filling machine is designed for hot-fill beverage production, integrating bottle rinsing, juice filling, and capping in one monoblock system. Built with SUS304 stainless steel, it meets strict food safety standards and supports both micro-negative pressure and gravity filling modes, ideal for 85°C hot filling of fruit juices, tea drinks, and other beverages.

With production capacities ranging from 1500 to 15000 bottles per hour, the machine adapts to small to large-scale manufacturing needs. It handles glass bottles of 160-340mm height and 50-100mm diameter, with multi-head configurations for rinsing, filling, and capping. The system is compatible with aluminum, ring pull, and twist-off caps, ensuring versatile packaging solutions.

The machine features PLC control for easy operation and monitoring, with adjustable parameters for different bottle sizes and production speeds. Its compact design reduces floor space requirements, while the modular structure allows for easy maintenance and cleaning.

Model	BGF14-12-5	BGF18-18-6	BGF24-24-8	BGF32-32-8	BGF40-40-10
Capacity (B/H)	1500-2000	3000-4000	5000-6000	8000-10000	12000-15000
Heads (Rinsing-Filling-Capping)	14-12-5	18-18-6	24-24-8	32-32-8	40-40-10
Suitable Bottle Height (mm)	160-340	160-340	160-340	160-340	160-340
Suitable Bottle Diameter (mm)	50-100	50-100	50-100	50-100	50-100
Filling Temperature	85°C Hot Filling	85°C Hot Filling	85°C Hot Filling	85°C Hot Filling	85°C Hot Filling
Cap Type	Aluminum / Ring Pull / Twist Off	Aluminum / Ring Pull / Twist Off	Aluminum / Ring Pull / Twist Off	Aluminum / Ring Pull / Twist Off	Aluminum / Ring Pull / Twist Off

If the video does not display, please refresh the page or visit our YouTube channel.

Turnkey Solution

Machine testing videos are available upon request.

We provide complete turnkey solutions for production lines, including designing, manufacturing, installation, commissioning and training.

Required workshop size
Power consumption
Water consumption
Staff required

Complete Line Workflow

Click the button below to see the detailed description.

Water Treatment System

We select the ideal water treatment solution based on your water source analysis and required water quality—helping you reduce material usage and maintenance costs.

Our advanced purification systems turn raw water into premium pure water, mineral water, and drinking water with consistent quality. From groundwater and mountain springs to rivers, wells, and lakes, our technology ensures reliable treatment across diverse water sources.

Bottle Blowing Machine

Our PET bottle blowing machine is designed for producing high-quality PET plastic containers and bottles. It is widely used for manufacturing carbonated drink bottles, mineral water bottles, oil bottles, pesticide bottles, cosmetics bottles, wide-mouth jars, and more.

With our fully automatic blow molding system, you can easily produce PET bottles in a wide range of shapes and specifications with high efficiency and consistent quality.

3-in-1 Filling Machine

This integrated machine combines washing, filling, and capping functions in a single unit. Its spiral design significantly enhances production speed.

Bottle size adjustment is simple and quick, allowing format changes to be completed within 30 minutes.

The entire machine is controlled by an advanced PLC system, with critical electrical components from internationally renowned brands, ensuring reliable and stable operation.

Conveying, Drying and Coding

The conveyor belt, dryer, and coding system of the filling machine work in coordination to ensure smooth bottle handling and optimal production efficiency. Bottles are transported precisely along the conveyor belt, thoroughly dried by a high-efficiency dryer to remove residual moisture, and then accurately positioned for coding or filling.

This integrated process minimizes contamination, reduces moisture residue, ensures consistent product quality, and maintains high production speeds.

Labeling and Sleeving Machines

Navan labeling and sleeving machines feature a unique composite cutter design combined with premium steel materials, ensuring smooth operation while doubling cutter lifespan.

Their simple center-guide positioning design allows users to easily change specifications with straightforward operation. The first conveyor belt is driven by a brushless DC motor, featuring a well-structured design that is easy to maintain and delivers reliable performance.

Film Wrapping and Cartoning Machines

This machine is specifically designed for fully automated packaging lines handling products such as beer, beverages, purified water, juice, and dairy products.

It automates the entire process, including bottle conveying and alignment, film wrapping, sealing and cutting, shrinking, cooling, and molding.

The system employs advanced constant-temperature film heat-sealing technology, ensuring clear, strong, and reliable sealing.

Palletizing and Depalletizing

The palletizer automatically stacks packaged products (such as cartons, bags, or drums) onto designated empty pallets according to preset sequences.

This mechanized process simplifies product handling and transportation, improving overall production efficiency.

Additionally, interlayer sheets can be added to enhance the stability of each stacked layer. The equipment is designed with flexibility, allowing adjustments to meet various palletizing requirements based on different production needs and configurations.

About Navan

Navan Machine, Since 2010s, is a professional manufacturer specializing in customized water filling machine. With more than a decade of experience, we have proudly served customers in 42 countries and regions worldwide.

Factory Direct Pricing

No middlemen – preferential terms and reliable partnerships.

Complete Production Cycle

Design, manufacturing, delivery, and installation – all handled by the same supplier.

Global Export and Installation

Experience working with over 40 countries.

Fast Delivery of Spare Parts and Technical Support

Provides components and technical support, with rapid delivery.

Frequently Asked Questions

How do l choose the right capacity?

The right capacity depends on your factory size, market demand, and budget. For small to medium operations, 2,000-12,000 BPH is recommended. For large-scale production, 12,000-24,000 BPH models are suitable. We can provide a detailed capacity analysis based on your specific requirements.

How do you ensure product quality?

We implement strict QC procedures, including machining accuracy checks, assembly precision inspection, sampling of electrical components, and FAT & SAT testing to guarantee reliable machine performance.

How long does delivery take?

Standard delivery time is 25-60 days depending on configuration and customization requirements. Standard models can be delivered in 25-35 days, while customized turnkey solutions may take 45-60 days.

What kind of after-sales service do you provide?

We offer 24/7 online technical support, on-site installation and commissioning, operator training, and long-term spare parts supply.

How fast can you supply spare parts?

Standard purchased parts: shipped within 24 hours by air express.
Non-standard parts: shipped within 48 hours or technical drawings provided for local processing.
Urgent cases: manual delivery can be arranged.

Do you provide installation and training?

Yes, we provide comprehensive training for your staff both at our factory and on-site after installation. The training covers operation, maintenance, troubleshooting, and safety procedures. We also provide detailed operation manuals and video tutorials in multiple languages.
