A reliable glass beer bottling machine is the final defense for your product’s quality. Combining industrial durability with modern automation, our beer bottling line provides the precision needed to protect your brand’s reputation and flavor.
Select product requirements by clicking.
Equipped with an electronically controlled long-tube CO2 replacement system. By achieving ultra-low dissolved oxygen (DO) levels—as low as 30ppb—we maximize your beer’s freshness, extending its record shelf life to 118 days.
Utilizing advanced proportional membrane valves with continuous liquid-level floating technology. This system minimizes turbulence, ensures filling accuracy within ±2mm, and reduces liquid loss by 2.5%.
A universal capping platform supporting Plastic, Aluminum, Crown, and Plug-ring caps. Combined with a PLC-managed Closed-loop CIP (Clean-in-Place) system, it ensures maximum production flexibility and the highest sanitary standards.
Our PLC-controlled air cylinder filling valves are modified from world-class KHS technology. This robust design ensures industrial-grade reliability, faster flow rates, and a significantly longer service life than standard valves.
This equipment is designed to handle various liquids, including:

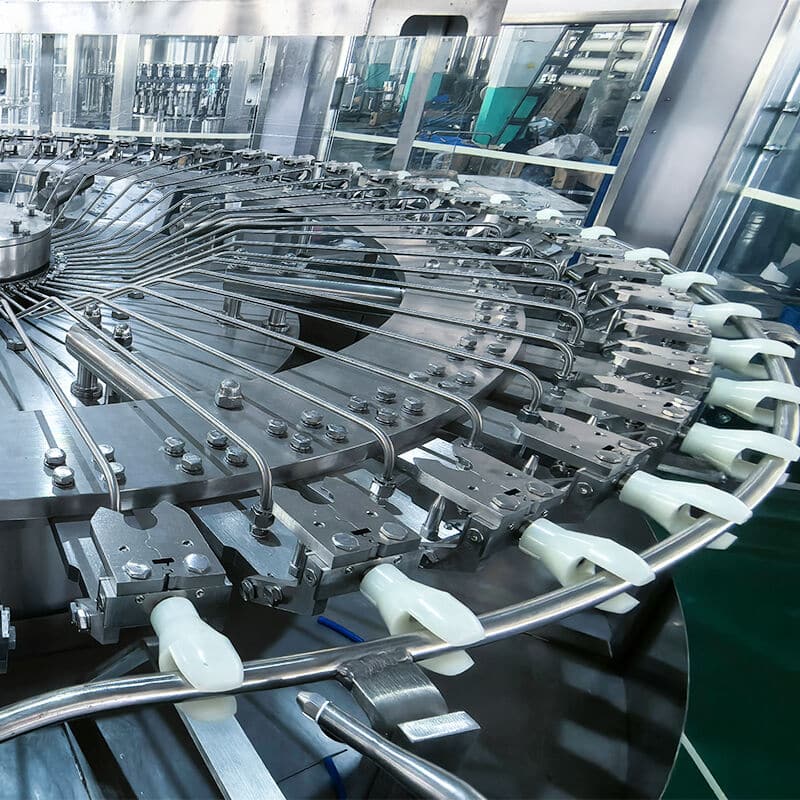

Stainless Steel Grippers: Securely hold glass bottles by the neck, using a 180° turnover for thorough internal cleaning.
Sanitary Nozzles: High-pressure sterile water spray ensures zero debris, with a “No Bottle, No Rinse” sensor.

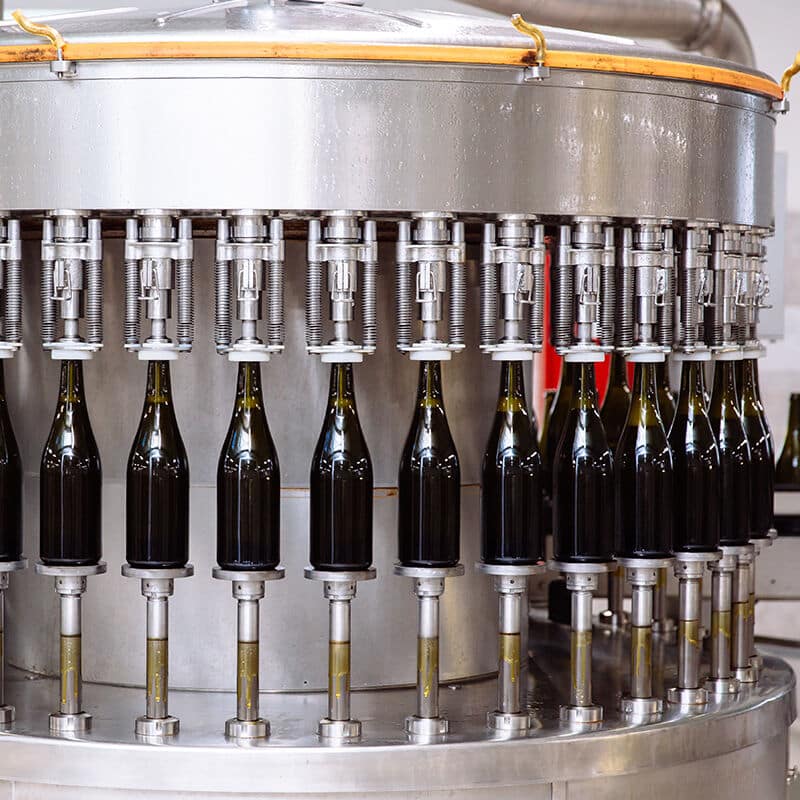

Proportional Membrane Valves: Modified from KHS technology, achieving a filling accuracy of ±2mm.
Double Pre-Evacuation: Removes air via CO2 replacement, reaching oxygen levels as low as 30ppb for freshness.
Versatile Capping Heads: Supports Metal Crown Caps, Aluminum Screw Caps, and Plug-ring Caps.
Neck Jetting System: High-pressure hot water injection creates foam to displace air before sealing.

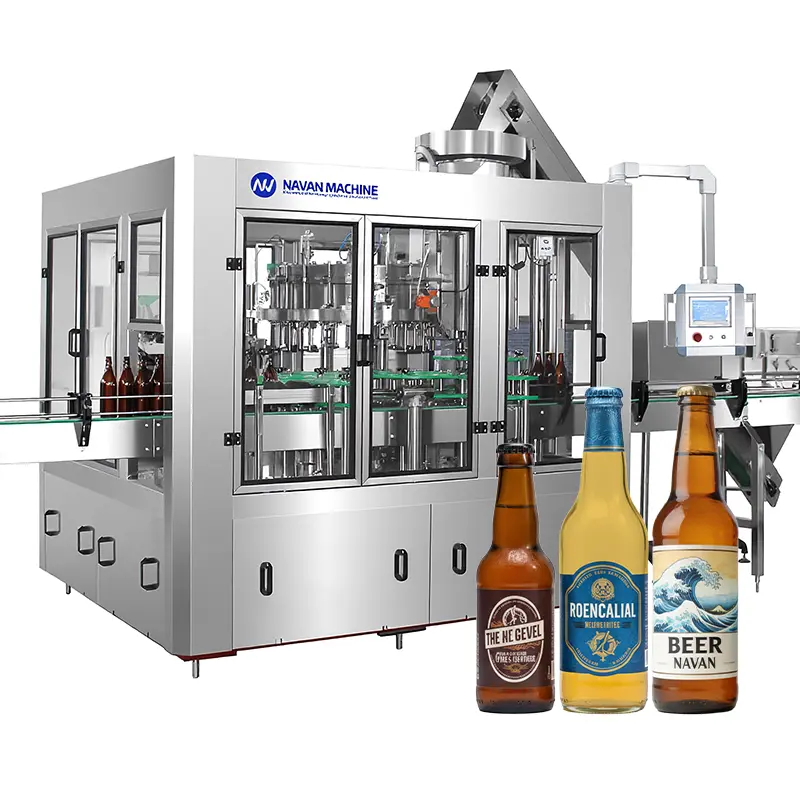

The Ultimate Bottling Solution for Modern Breweries Precision and purity are the heart of great brewing. Our glass beer bottling machine is engineered to meet the highest industry standards, providing a seamless 3-in-1 solution for rinsing, isobaric filling, and crown capping. Designed specifically for glass containers, this beer bottling machine minimizes oxygen pickup and preserves the complex flavor profile of your craft or commercial beer.
| Model | NPXGF 9-9-4 PRO | NPXGF 24-24-10 PRO | NPXGF 32-32-12 PRO | NPXGF 40-40-12 PRO |
| Production Capacity(500ml) | 600~1200BPH | 3000~6000BPH | 7000~9000BPH | 9000~12000BPH |
| Suitable Bottle Height(mm) | 120~320 | |||
| Suitable Bottle Diameter(mm) | 50~120 | |||
| Rinsing Water Pressure(Mpa) | 0.25~0.3 | |||
| Bottle Cap Style | Plastic Screw Cap / Aluminum Screw Cap / Metal Crown Cap / Plug-ring Crown Cap | |||
| Power Supply | Voltage:220V~415V, 3phase; Frequency: 50HZ/ 60HZ | |||
| Filling Pressure(Mpa) | 0.5~0.6 | |||
| Main Motor Power(Kw) | 3 | 4 | 5.5 | 7.5 |
| Liquid Level Error | ±1~2mm | |||
| Overall Dimensions(mm) | 3000x2200x2200 | 2600x2950x2200 | 4600x3500x2200 | 5400x3950x2200 |
| Weight(kg) | 4000 | 6000 | 10000 | 15000 |
We provide complete turnkey solutions for production lines, including designing, manufacturing, installation, commissioning and training.
If the video does not display, please refresh the page or visit our YouTube channel.
High-Speed Glass Bottle Beer Filling Line Watch our 3-in-1 monoblock in action: featuring high-pressure rinsing, isobaric filling with ultra-low oxygen pickup (30ppb), and precision crown capping. Engineered for craft and commercial breweries, this system ensures maximum freshness and perfect carbonation in every bottle.
Click the button below to see the detailed description.
We select the ideal water treatment solution based on your water source analysis and required water quality—helping you reduce material usage and maintenance costs.
Our advanced purification systems turn raw water into premium pure water, mineral water, and drinking water with consistent quality. From groundwater and mountain springs to rivers, wells, and lakes, our technology ensures reliable treatment across diverse water sources.
Our PET bottle blowing machine is designed for producing high-quality PET plastic containers and bottles. It is widely used for manufacturing carbonated drink bottles, mineral water bottles, oil bottles, pesticide bottles, cosmetics bottles, wide-mouth jars, and more.
With our fully automatic blow molding system, you can easily produce PET bottles in a wide range of shapes and specifications with high efficiency and consistent quality.
This integrated machine combines washing, filling, and capping functions in a single unit. Its spiral design significantly enhances production speed.
Bottle size adjustment is simple and quick, allowing format changes to be completed within 30 minutes.
The entire machine is controlled by an advanced PLC system, with critical electrical components from internationally renowned brands, ensuring reliable and stable operation.
The conveyor belt, dryer, and coding system of the filling machine work in coordination to ensure smooth bottle handling and optimal production efficiency. Bottles are transported precisely along the conveyor belt, thoroughly dried by a high-efficiency dryer to remove residual moisture, and then accurately positioned for coding or filling.
This integrated process minimizes contamination, reduces moisture residue, ensures consistent product quality, and maintains high production speeds.
Navan labeling and sleeving machines feature a unique composite cutter design combined with premium steel materials, ensuring smooth operation while doubling cutter lifespan.
Their simple center-guide positioning design allows users to easily change specifications with straightforward operation. The first conveyor belt is driven by a brushless DC motor, featuring a well-structured design that is easy to maintain and delivers reliable performance.
This machine is specifically designed for fully automated packaging lines handling products such as beer, beverages, purified water, juice, and dairy products.
It automates the entire process, including bottle conveying and alignment, film wrapping, sealing and cutting, shrinking, cooling, and molding.
The system employs advanced constant-temperature film heat-sealing technology, ensuring clear, strong, and reliable sealing.
The palletizer automatically stacks packaged products (such as cartons, bags, or drums) onto designated empty pallets according to preset sequences.
This mechanized process simplifies product handling and transportation, improving overall production efficiency.
Additionally, interlayer sheets can be added to enhance the stability of each stacked layer. The equipment is designed with flexibility, allowing adjustments to meet various palletizing requirements based on different production needs and configurations.
Navan Machine, Since 2010s, is a professional manufacturer specializing in customized water filling machine. With more than a decade of experience, we have proudly served customers in 42 countries and regions worldwide.
No middlemen – preferential terms and reliable partnerships.
Design, manufacturing, delivery, and installation – all handled by the same supplier.
Experience working with over 40 countries.
Provides components and technical support, with rapid delivery.
The right capacity depends on your factory size, market demand, and budget. For small to medium operations, 2,000-12,000 BPH is recommended. For large-scale production, 12,000-24,000 BPH models are suitable. We can provide a detailed capacity analysis based on your specific requirements.
We implement strict QC procedures, including machining accuracy checks, assembly precision inspection, sampling of electrical components, and FAT & SAT testing to guarantee reliable machine performance.
Standard delivery time is 25-60 days depending on configuration and customization requirements. Standard models can be delivered in 25-35 days, while customized turnkey solutions may take 45-60 days.
We offer 24/7 online technical support, on-site installation and commissioning, operator training, and long-term spare parts supply.
Standard purchased parts: shipped within 24 hours by air express.
Non-standard parts: shipped within 48 hours or technical drawings provided for local processing.
Urgent cases: manual delivery can be arranged.
Yes, we provide comprehensive training for your staff both at our factory and on-site after installation. The training covers operation, maintenance, troubleshooting, and safety procedures. We also provide detailed operation manuals and video tutorials in multiple languages.
