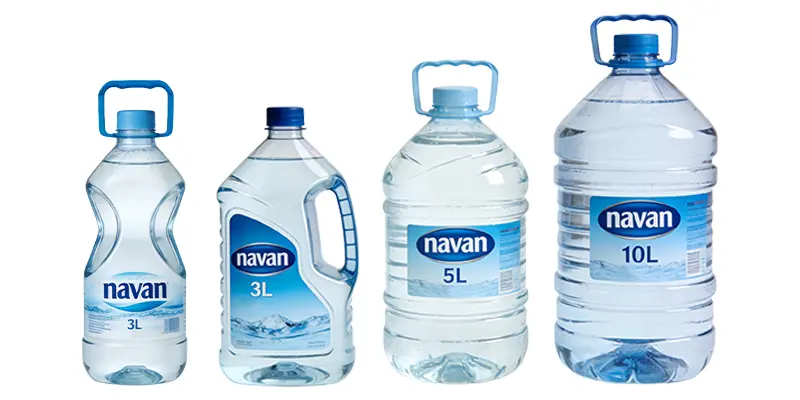

Advanced 3-10L Bottling Technology Meet the growing demand for family-sized water with our large bottle water filling machine. Engineered for 3L to 10L PET bottles, it delivers the essential flexibility and speed for any modern water bottle packing plant.
Select product requirements by clicking.
Our system combines bottle rinsing, constant-pressure filling, and precision capping into a single, synchronized unit. This compact design minimizes footprint and prevents contamination during the transfer process.

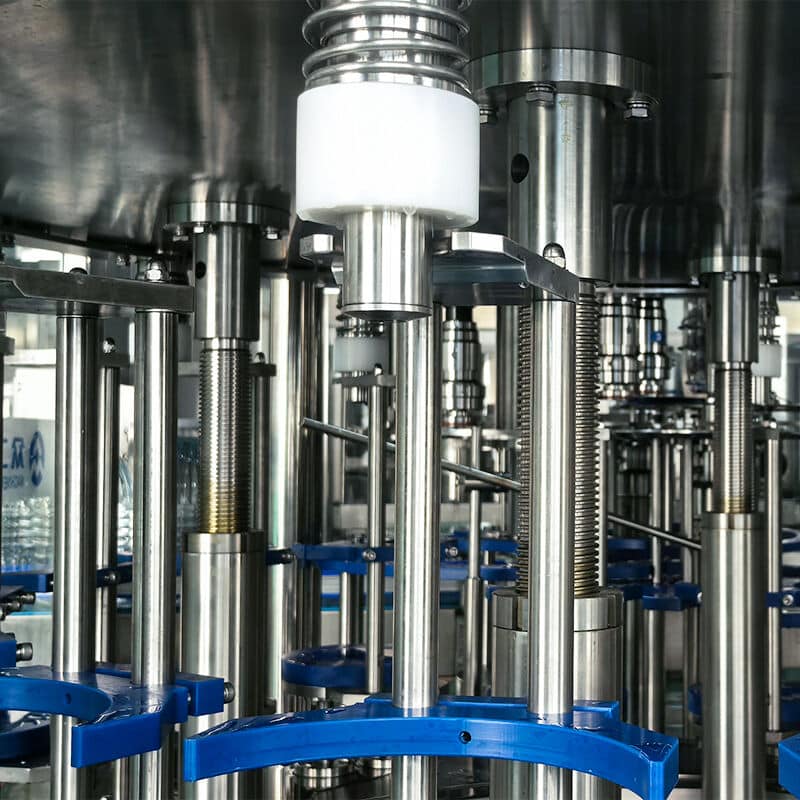

Equipped with specialized large-diameter filling valves, this large bottle water filling machine ensures a fast flow rate without foaming or splashing, maintaining accurate liquid levels for 5L and 10L containers.
Built with high-grade SUS304/316 stainless steel, every component in contact with water is designed for maximum hygiene and corrosion resistance, ensuring your water bottle packing plant meets international safety standards.
Featuring an intuitive touch-screen interface (HMI) and Siemens/Schneider electronics, the machine allows for quick changeovers between different bottle sizes, reducing downtime and labor costs.
This equipment is designed to handle various liquids, including:
180° Turnover: Stainless steel grippers flip bottles for deep internal cleaning.
Smart Spray: High-pressure nozzles with “No Bottle, No Rinse” sensors.

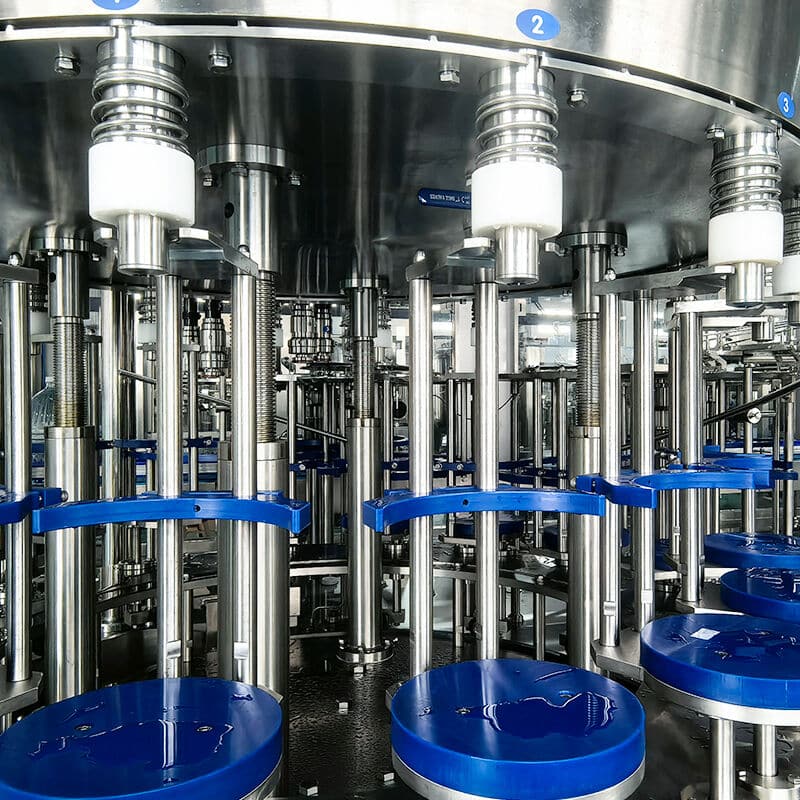

Large-Flow Valves: Specially designed for fast, splash-free 3-10L filling.
±2mm Accuracy: Gravity-based level control for perfect consistency.
Magnetic Torque: Ensures consistent tightness without damaging caps.
Pick-and-Place: Precision alignment for leak-proof, airtight results.
Investing in a robust large bottle water filling machine is critical for scaling your business. Our equipment is not just a standalone unit; it is the heart of a complete water bottle packing plant. We provide end-to-end support—from water treatment and blow molding to labeling and palletizing—ensuring your production line operates at peak efficiency with minimal maintenance.
| Model | CGF8-8-8-3/4 | CGF12-12-5/6 | CGF18-18-6 | CGF24-24-8 |
|---|---|---|---|---|
| Application | Spring water / mineral water / pure water / non-gas wine drink and so on | |||
| No. of Rinsing/Filling/Capping | 8-8-3/4 | 12-12-5/6 | 18-18-6 | 24-24-8 |
| Production Capacity(500ml) | 2000BPH | 4000BPH | 6000-7000BPH | 10000~12000BPH |
| Filling way/principle | Gravity filling method | |||
| Control system | SIMENS PLC+ TOUCH SCREEN | |||
| Main Power | 1.9kw | 3.5kw | 4.0kw | 4.8kw |
| Power Supply | Voltage:220V~480V, 3phase; Frequency:50HZ/60HZ or your requirement | |||
| Overall dimensions (mm) | 1900*1420*2000 | 2050*1800*2400 | 2580*2100*2200 | 2780*2200*2200 |
| Weight (kg) | 1500 | 2500 | 3500 | 4500 |
| All machines could be customized , we could design and produce machines according to your request. | ||||
We provide complete turnkey solutions for mineral water production lines, including
design, manufacturing, installation, commissioning, and training.
If the video does not display, please refresh the page or visit our YouTube channel.

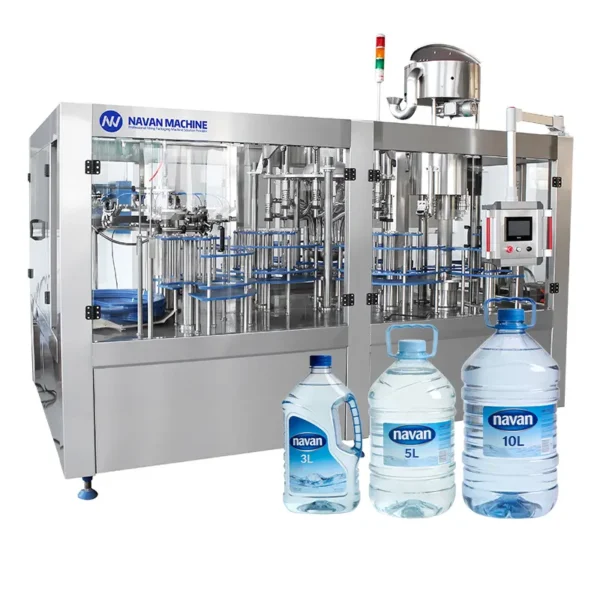

Integrated 3-in-1 Monoblock Performance Watch our 3-10L large bottle water filling machine in action, seamlessly integrating automatic rinsing, precision filling, and secure capping into one high-speed production line.
Click the button below to see the detailed description.
We select the ideal water treatment solution based on your water source analysis and required water quality—helping you reduce material usage and maintenance costs.
Our advanced purification systems turn raw water into premium pure water, mineral water, and drinking water with consistent quality. From groundwater and mountain springs to rivers, wells, and lakes, our technology ensures reliable treatment across diverse water sources.
Our PET bottle blowing machine is designed for producing high-quality PET plastic containers and bottles. It is widely used for manufacturing carbonated drink bottles, mineral water bottles, oil bottles, pesticide bottles, cosmetics bottles, wide-mouth jars, and more.
With our fully automatic blow molding system, you can easily produce PET bottles in a wide range of shapes and specifications with high efficiency and consistent quality.
This integrated machine combines washing, filling, and capping functions in a single unit. Its spiral design significantly enhances production speed.
Bottle size adjustment is simple and quick, allowing format changes to be completed within 30 minutes.
The entire machine is controlled by an advanced PLC system, with critical electrical components from internationally renowned brands, ensuring reliable and stable operation.

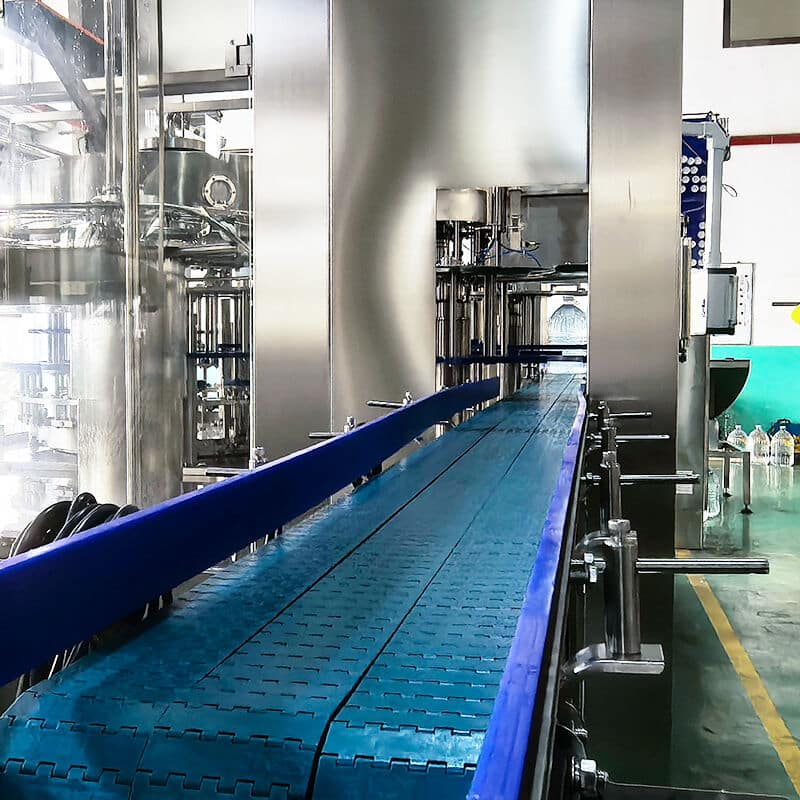

The conveyor belt, dryer, and coding system of the filling machine work in coordination to ensure smooth bottle handling and optimal production efficiency. Bottles are transported precisely along the conveyor belt, thoroughly dried by a high-efficiency dryer to remove residual moisture, and then accurately positioned for coding or filling.
This integrated process minimizes contamination, reduces moisture residue, ensures consistent product quality, and maintains high production speeds.
Navan labeling and sleeving machines feature a unique composite cutter design combined with premium steel materials, ensuring smooth operation while doubling cutter lifespan.
Their simple center-guide positioning design allows users to easily change specifications with straightforward operation. The first conveyor belt is driven by a brushless DC motor, featuring a well-structured design that is easy to maintain and delivers reliable performance.
This machine is specifically designed for fully automated packaging lines handling products such as beer, beverages, purified water, juice, and dairy products.
It automates the entire process, including bottle conveying and alignment, film wrapping, sealing and cutting, shrinking, cooling, and molding.
The system employs advanced constant-temperature film heat-sealing technology, ensuring clear, strong, and reliable sealing.
The palletizer automatically stacks packaged products (such as cartons, bags, or drums) onto designated empty pallets according to preset sequences.
This mechanized process simplifies product handling and transportation, improving overall production efficiency.
Additionally, interlayer sheets can be added to enhance the stability of each stacked layer. The equipment is designed with flexibility, allowing adjustments to meet various palletizing requirements based on different production needs and configurations.
Navan Machine, Since 2010s, is a professional manufacturer specializing in customized water filling machine. With more than a decade of experience, we have proudly served customers in 42 countries and regions worldwide.
No middlemen – preferential terms and reliable partnerships.
Design, manufacturing, delivery, and installation – all handled by the same supplier.
Experience working with over 40 countries.
Provides components and technical support, with rapid delivery.
The right capacity depends on your factory size, market demand, and budget. For small to medium operations, 2,000-12,000 BPH is recommended. For large-scale production, 12,000-24,000 BPH models are suitable. We can provide a detailed capacity analysis based on your specific requirements.
We implement strict QC procedures, including machining accuracy checks, assembly precision inspection, sampling of electrical components, and FAT & SAT testing to guarantee reliable machine performance.
Standard delivery time is 25-60 days depending on configuration and customization requirements. Standard models can be delivered in 25-35 days, while customized turnkey solutions may take 45-60 days.
We offer 24/7 online technical support, on-site installation and commissioning, operator training, and long-term spare parts supply.
Standard purchased parts: shipped within 24 hours by air express.
Non-standard parts: shipped within 48 hours or technical drawings provided for local processing.
Urgent cases: manual delivery can be arranged.
Yes, we provide comprehensive training for your staff both at our factory and on-site after installation. The training covers operation, maintenance, troubleshooting, and safety procedures. We also provide detailed operation manuals and video tutorials in multiple languages.
