Design Services
We provide comprehensive design services to help you plan, visualize, and optimize your water filling and beverage production lines. Our goal is to deliver efficient, safe, and visually accurate solutions tailored to your needs.
1

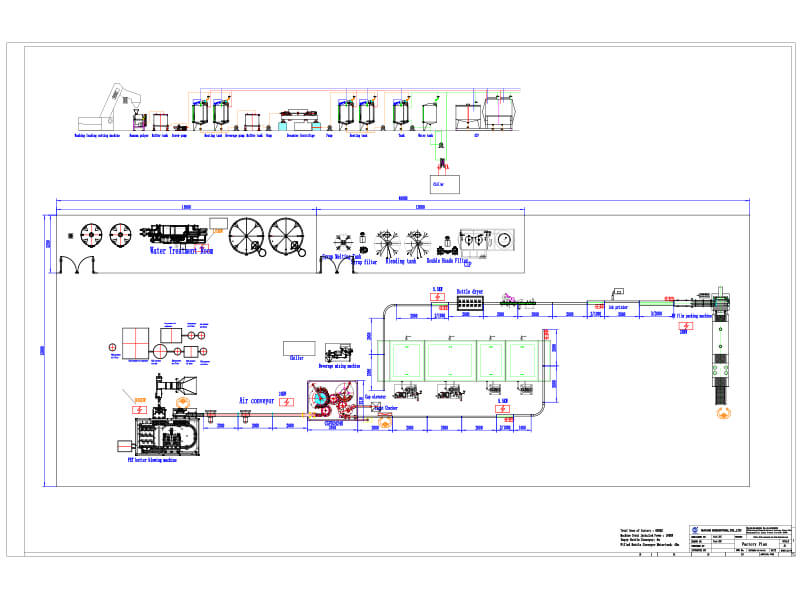

Layout Planning
We create customized layout plans to ensure optimal workflow, space utilization, and smooth integration of all machinery and components.
Our layouts help minimize operational bottlenecks and maximize production efficiency.
2

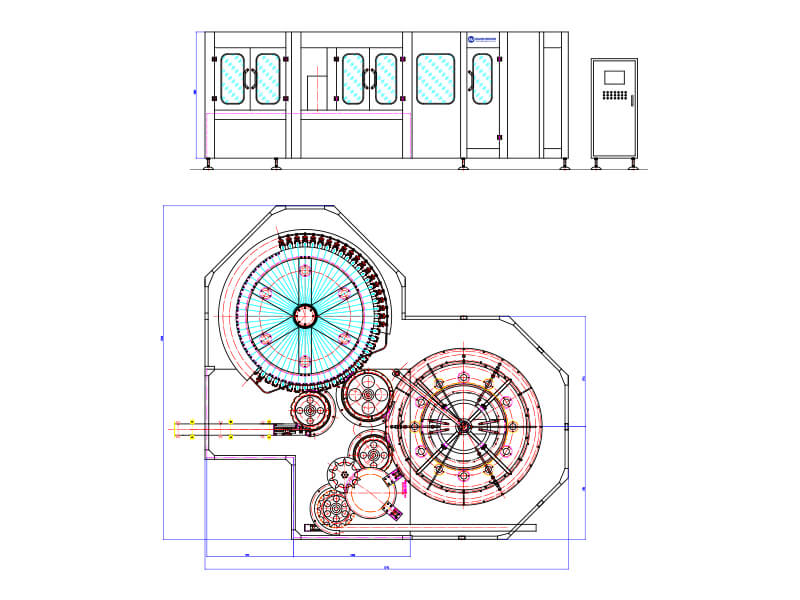

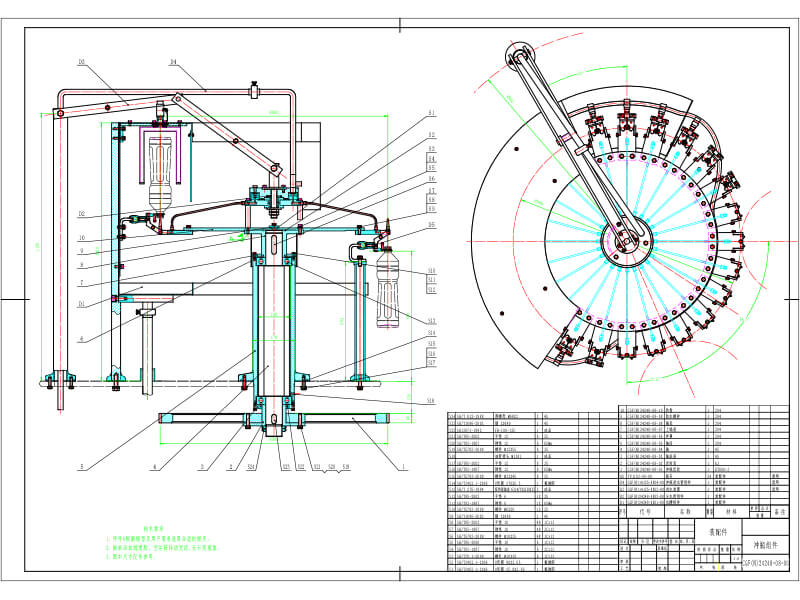

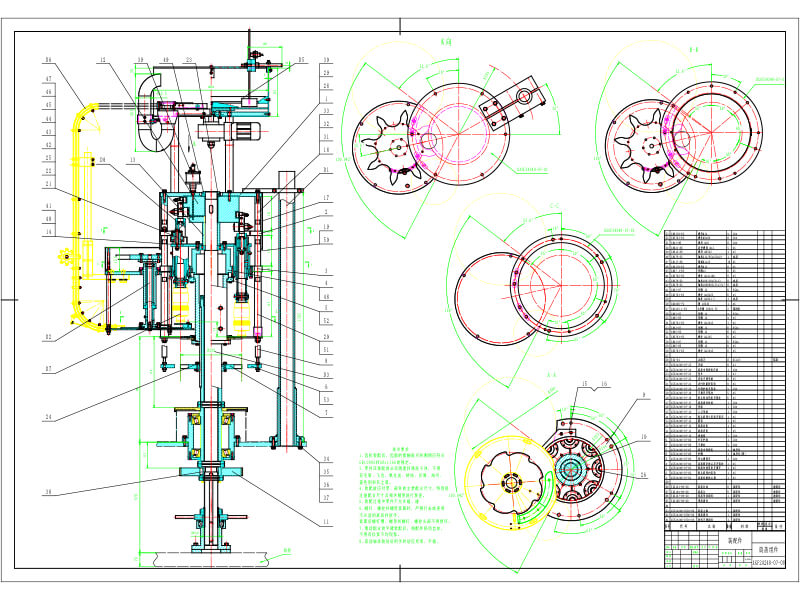

Technical Drawings
Detailed 2D drawings of your production line and machinery are provided for manufacturing, installation, and maintenance purposes.
Drawings include precise dimensions, assembly instructions, and installation guidance.
3
3D Sketches
3D visualizations bring your production line to life before implementation.
These realistic sketches allow you to evaluate space, flow, and overall design aesthetics, ensuring confidence in the final setup.
Why Choose Our Design Services
1
Professional expertise in beverage machinery layout and design.
2
Tailored solutions for both standard and custom production lines.
3
Enhanced planning efficiency and reduced installation risks.
With our design services, you can visualize, plan, and implement your production line with accuracy, efficiency, and confidence.
Have Questions?
We’ve Got Answers
Are you a factory or a distributor?
We are a manufacturer with our own international sales offices.
Our factory is located in Zhangjiagang, China, about 2 hours’ drive from Shanghai. In addition, we have sales and service centers in Rwanda, the Philippines, and Moscow.
If needed, we can arrange airport pickup and assist with your visit and itinerary.
What information is required before purchasing?
First, please let us know the liquid you plan to fill.
If you can also provide the following information, we can match your requirements more accurately:
Factory layout drawings – we can help design the production line layout
Bottle photos or samples – to recommend suitable blowing machines, labeling machines, and related equipment
Required production capacity – to recommend the most suitable filling machine model
Do you provide local installation service?
Yes, we provide on-site local installation and commissioning services.
We also offer remote installation guidance, maintenance support, and video instructions.
What certifications do you have?
Our machines are CE certified.
If your country requires additional certifications for the filling industry, we can cooperate to meet your specific requirements.
What bottle materials do you support?
We support PET bottles, glass bottles, and aluminum cans.
For PET bottles, supported capacities include:
- Small bottles: 100 ml – 2 L
- Large bottles: 3 – 10 L
- Drinking water gallon bottles: 3 L and 10 L
Do you offer customized solutions?
Yes. We can customize machine configurations based on your requirements, including:
- Machine material
- PLC brand
- Filling valves / filling heads
- Packaging methods
What is the delivery time?
Standard models: 30–45 days
Customized models: Delivery time depends on customization requirements and will be confirmed accordingly
What is the warranty period?
- Standard components: 2-year warranty
- Customized components: 1-year warranty
Do you have export experience?
Yes. We have been exporting machinery since 2010.
So far, our machines have been exported to more than 40 countries and regions worldwide.
Why choose us?
Navan Machine has extensive export experience and its own manufacturing facility, enabling flexible and reliable customization.
Equipment delivery is not the end — it is the beginning of our service.
