采用独立伺服控制放卷、送标、转鼓，配合自动纠编器，切标精度～1mm，送标精度 ±0.3mm，标签无歪斜、无气泡，图案不变形，保障包装美观度。

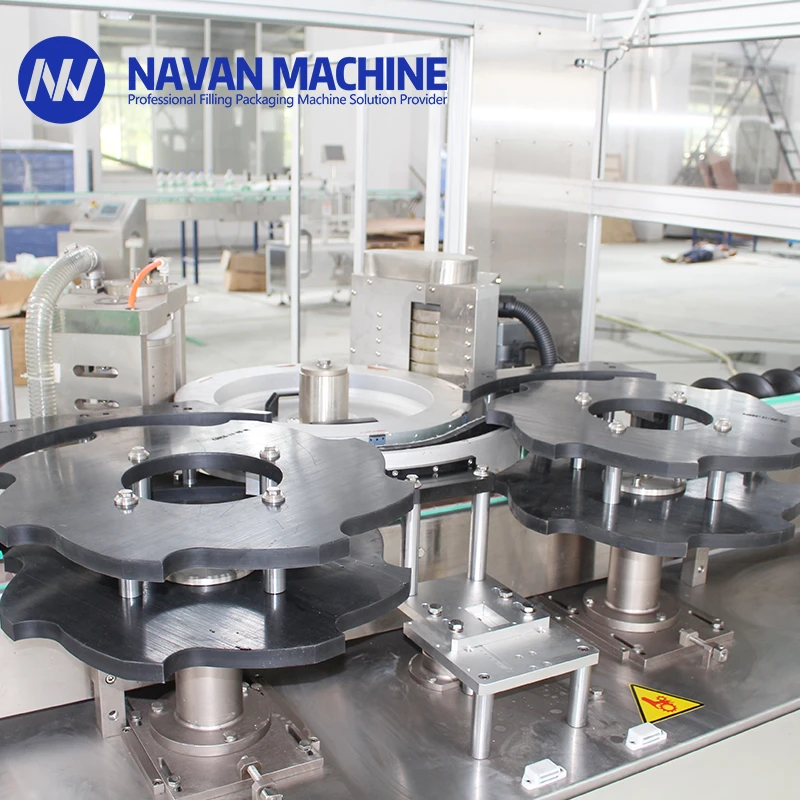

拔瓶轮采用无压力进瓶设计，避免瓶身挤压变形，高速运转时也能保证瓶子进出流畅稳定，减少生产损耗。
全中文 / 英文触控屏操作，无级变速调节，仅需在人机界面设定产能，输送、螺杆、进出瓶星轮等参数自动同步，无需单独调节，上手零门槛。
搭载德国倍福 PLC 控制系统与瑞士 ABB 大功率伺服送标系统，大扭矩、超小惯量设计，运行稳定可靠，大幅降低后期维护成本。
| 项目 | 参数 |
|---|---|
| 工位数 | 6 工位 |
| 使用电源 | AC380V 50Hz 22KW |
| 生产速度 | 3600-4200 BPH（与被贴物外形和标签有关） |
| 速度调整方式 | 无级变速 |
| 贴标精度 | ±1.5mm（要求产品尺寸误差 ±0.3mm 内） |
| 适用产品尺寸 | ≤Ø220mm |
| 标签纸芯内径 | Ø152.4 mm |
| 标签最大直径 | Ø600 mm |
| 标签最大高度 | H130mm |
| 标签最小高度 | H30mm |
| 涂胶方式 | 滚胶方式，在标签两头施胶 |
| 熔胶温度 | 120-160°C |
| 标签类型 | OPP 膜、珠光膜、纸塑复合膜、纸标 |
| 气源要求 | 5Kg（5bar） |
| 整机尺寸 | L3100×W2100×H2300mm |
| 整机重量 | 6000kg |
我们提供机器的试机视频。
我们为生产线提供完整的交钥匙解决方案，包括设计、制造、安装、调试和培训。
联系我们以获得全面的解决方案，包括：
点击下方按钮查看详细描述：
我们会根据您的水源分析和所需水质，为您选择理想的水处理方案，帮助您降低材料消耗和维护成本。
我们先进的净化系统可将原水转化为优质纯净水、矿泉水和饮用水，并确保水质始终如一。从地下水、山泉水到河流、水井和湖泊，我们的技术能够确保对各种水源进行可靠处理。
我们的PET瓶吹塑机专为生产高质量PET塑料容器和瓶子而设计。它广泛应用于碳酸饮料瓶、矿泉水瓶、食用油瓶、日化用品瓶、化妆品瓶、广口瓶等产品的生产。
借助我们的全自动吹塑系统，您可以轻松高效地生产各种形状和规格的PET瓶，并确保产品质量始终如一。
这款灌装机集清洗、灌装和封盖功能于一体，采用螺旋式设计，提高了生产速度。
瓶子尺寸调整简便，可在30分钟内完成瓶型更换。
整机由先进的PLC系统控制，关键电气元件均采用可靠的国际知名品牌，确保设备运行可靠稳定。
灌装机的输送带、干燥机和喷码系统协同工作，确保瓶子处理流畅，生产效率最佳。瓶子沿输送带精确输送，由高效干燥机彻底干燥以去除残留水分，然后准确定位进行喷码或灌装。
这种一体化流程最大限度地减少污染，降低水分残留，确保产品质量稳定，同时保持较高的生产速度。
纳凡贴标机和套标机采用独特的复合刀具设计，并结合优质钢材，确保运行平稳，同时使刀具寿命延长一倍。
其简洁的中心导向定位设计方便用户轻松更改规格，操作简便。第一条传送带由无刷直流电机驱动，结构设计合理，易于维护，性能可靠。
本机专为啤酒、饮料、纯净水、果汁、乳制品等产品的全自动包装生产线而设计。
它可实现瓶子输送和排列、薄膜缠绕、封口切割、收缩、冷却和成型等全过程自动化。
该系统采用先进的恒温薄膜热封技术，确保封口清晰、牢固、可靠。
码垛机可根据预设顺序，自动将包装好的产品（例如纸箱、袋子或桶）堆放到指定的空托盘上。
这种机械化流程简化了产品搬运和运输过程，提高了整体生产效率。
此外，还可以添加层间垫板以增强每层堆垛的稳定性。该设备设计灵活，可根据不同的生产需求和配置进行调整，以满足各种码垛要求。
合适的产能取决于您的工厂规模、市场需求和预算。对于中小型企业，建议选择每小时2,000-12,000瓶的产能。对于大型生产企业，12,000-24,000瓶/小时的机型更为合适。我们可以根据您的具体需求提供详细的产能分析。
我们实施严格的质量控制程序，包括加工精度检查、装配精度检验、电气元件抽样检测以及工厂验收测试和现场验收测试，以确保机器性能可靠。
出口的标准送货时间为 25-60 天，国内运输时间为3-7天，具体取决于具体位置。标准型号可在 25-35 天内送达，而定制的整体解决方案可能需要 45-60 天。
我们提供24小时全天候在线技术支持，支持现场安装调试、操作人员培训以及长期备件供应。
是的，我们会在工厂和安装现场为您的员工提供全面的培训。培训内容包括操作、维护、故障排除和安全规程。我们还提供多种语言的详细操作手册和视频教程。
请填写以下表格，我们的工程师将在12小时内与您联系，为您提供量身定制的解决方案、设备配置及报价。
